Plastic Pulverizer
Plastic Pulverizer

Plastic Pulverizer

Plastic pulverizer is used to waste recycling utilization, plastic pipe and profile recycling, plastic modification widely.
Model:SMF-400 SMF-500 MF-500 MF-600
Code:8479820090

Inquire
  • Product Description

Products Description

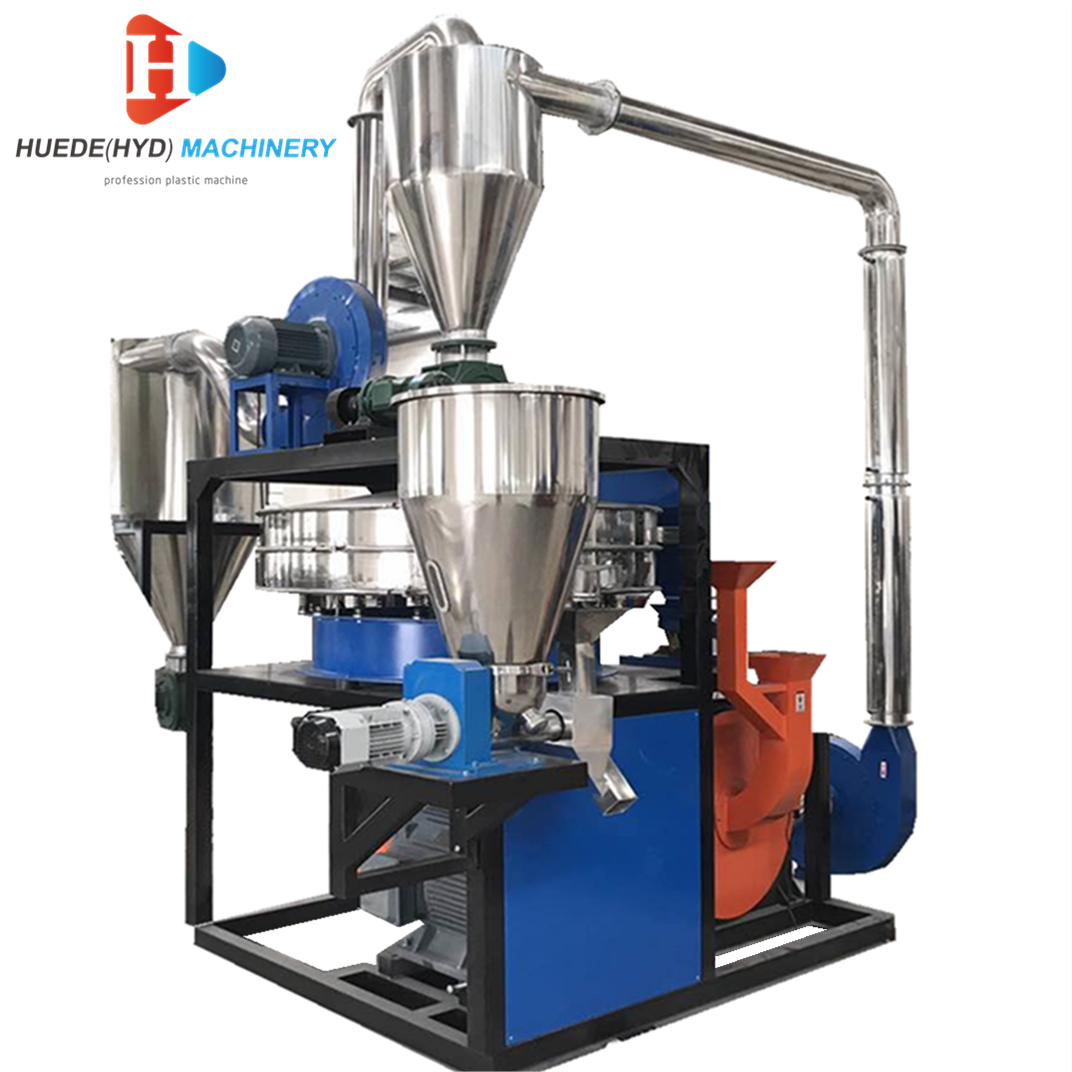

Small PVC Plastic Milling Machine pulverizing Machine Miller crusher PP PE

1. The pvc milling machine can grind most kinds of Hard & Soft materials into 20-100 mesh powders in normal temperature. 2. A widely use range, PVC/PE/HDPE/LDPE/LLDPE/ABS/PS/PA/PC/PET/PMMA/PLA Materials. 3. Equipped with seperatly Dust powder collector. 4. The transport pipe and silo are all bade by stainless steel, it can work much more continously than normal steel type. 5. Knife can be adjusted easily, smaller size powder or bigger size powder is just according to your demand. 6.Low energy consumption and high output.
pvc plastic milling machine
Product Advantages
1.New grinding disc design, high output, strong wear resistance, life is twice that of ordinary grinding disc. 2.Using newly designed special bearings to achieve high speed 3.Easy installation and maintenance, can be cleaned by opening the door cover 4.The grinding process is fully sealed, no dust leakage 5.Fully automatic, automatic feeding, discharging and sorting 6.The adjustment of the grinding gap is simple, just use the feeler gauge and adjusting bolt to adjust 7.The main engine cooling system adopts wind and water combined cooling 8.Reasonable design, small grinding cavity cross-section, the material will be caught and ground immediately when it    enters, and it will be removed quickly, avoiding the temperature and decomposition of the material, thus having higher output
Product Paramenters
Machine Model
MF-400
MF-500
MF-600
MF-800
Main motor power
30KW
37KW
55KW
75KW
Vibrating screen Diameter
600mm
800mm
1000mm
1200mm
Capacity
50-150kg/h
150-250kg/h
250-350kg/h
350-450kg/h
