PVC pipe and profile crusher machine

The PVC Profile Crusher adopts imported high quality tool steel, which is particularly durable. The installation of the blade can be adjusted and sharpened again and again. It has a long service life.

Inquire

Product Description

Products Description

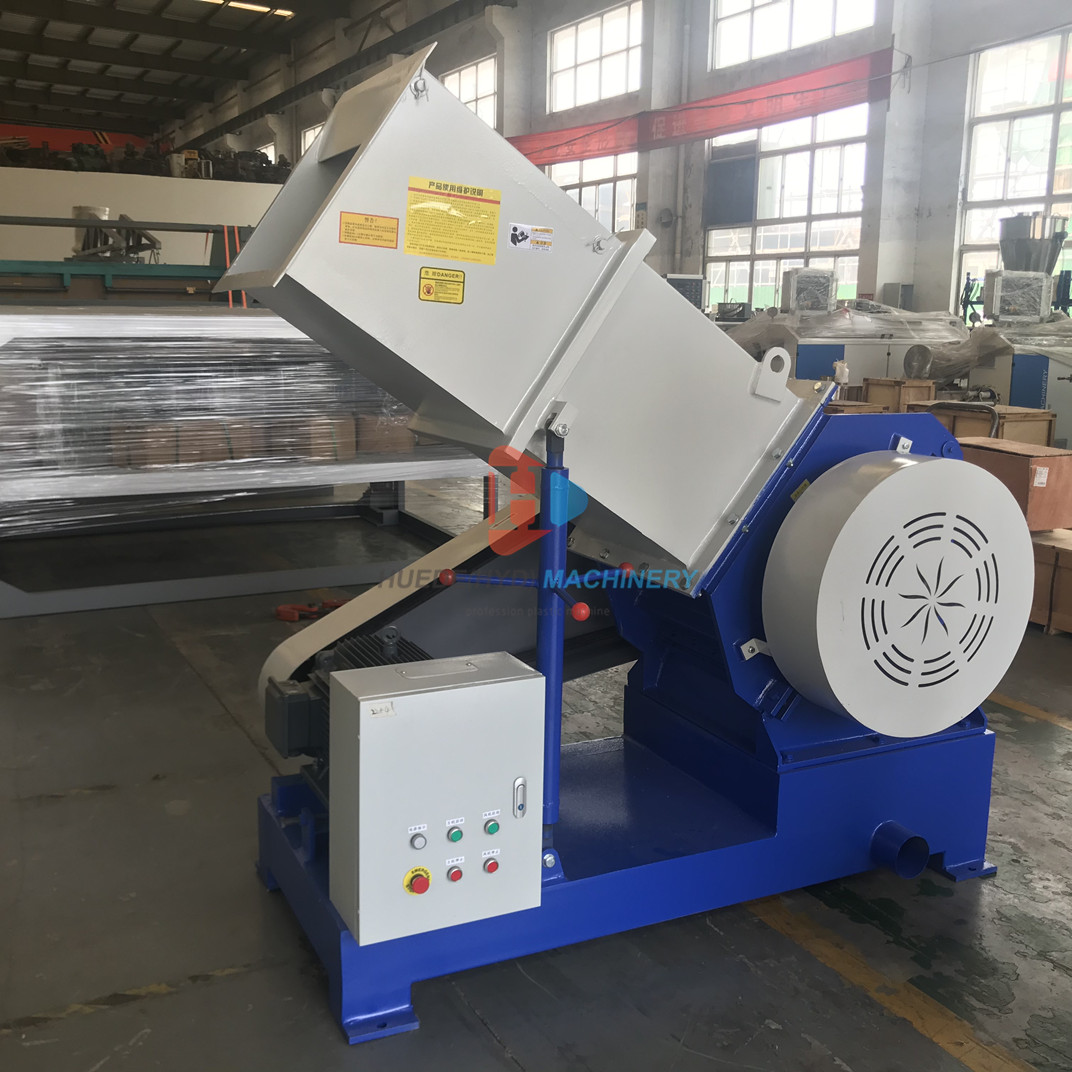

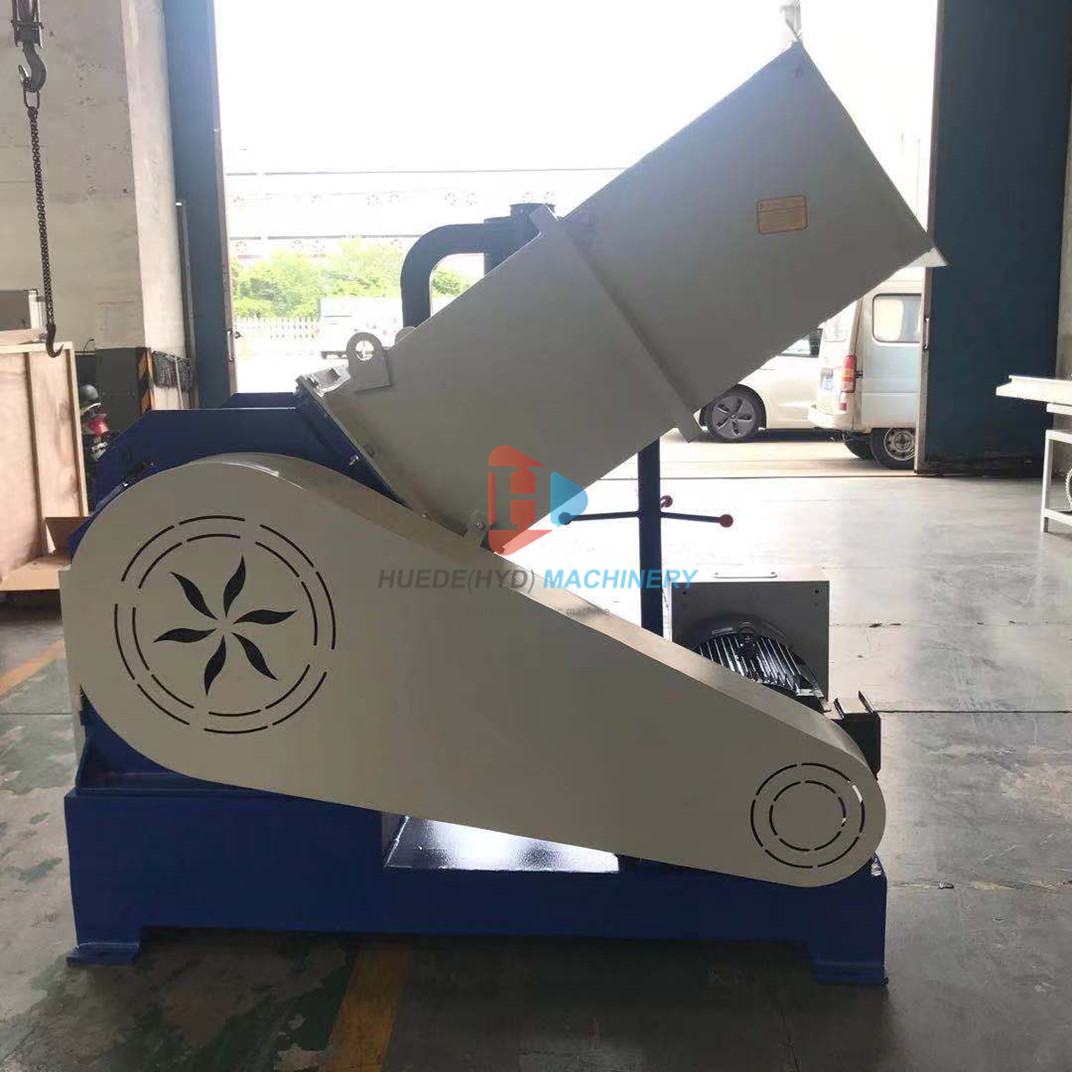

Window And Door Profile Crusher Machine

The PVC Profile Crusher adopts imported high quality tool steel, which is particularly durable. The installation of the blade can be adjusted and sharpened again and again. It has a long service life.

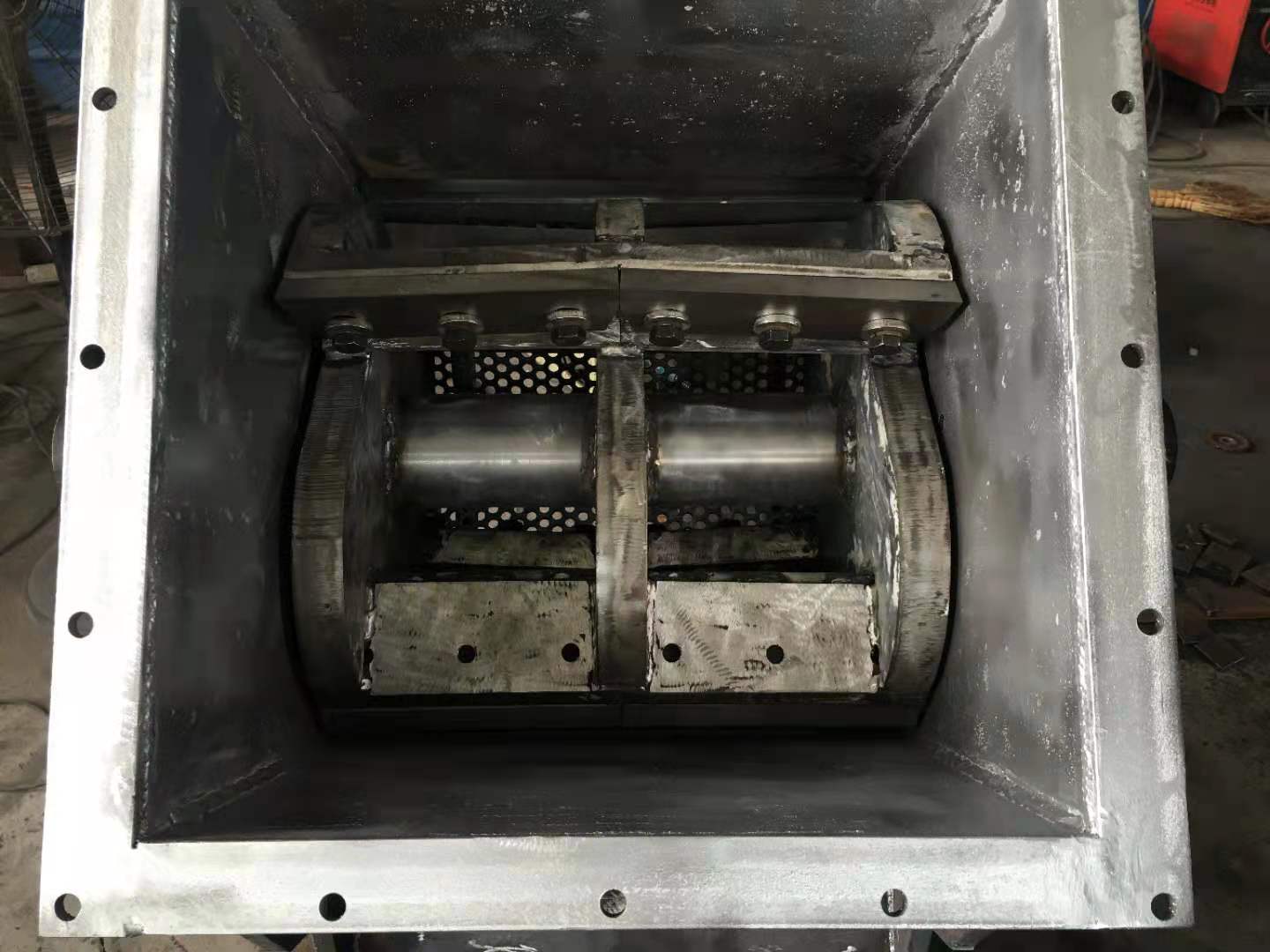

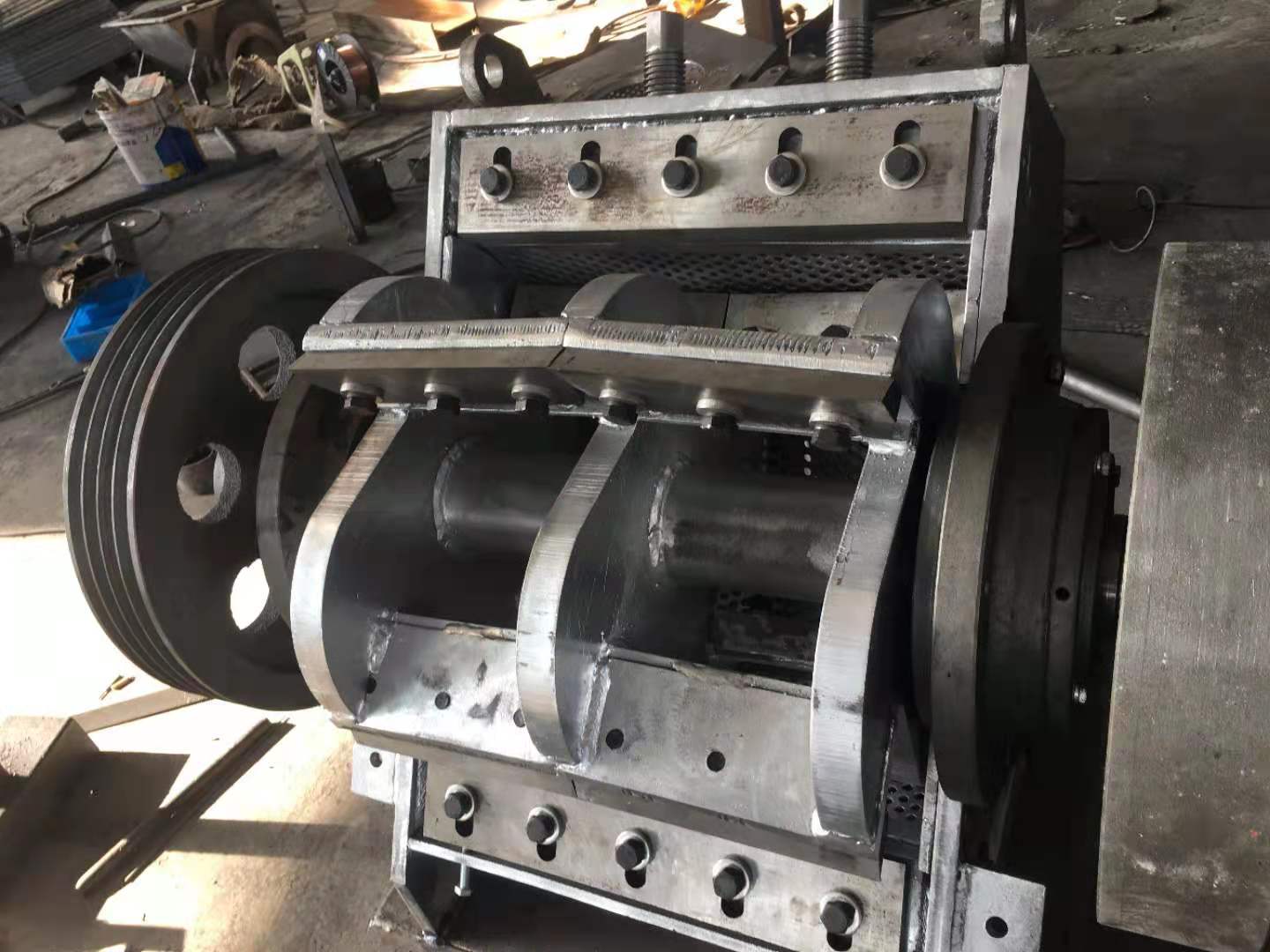

The rotary blade holder is a stepped design, which can eliminate the cutting force and increase the cutting force time.

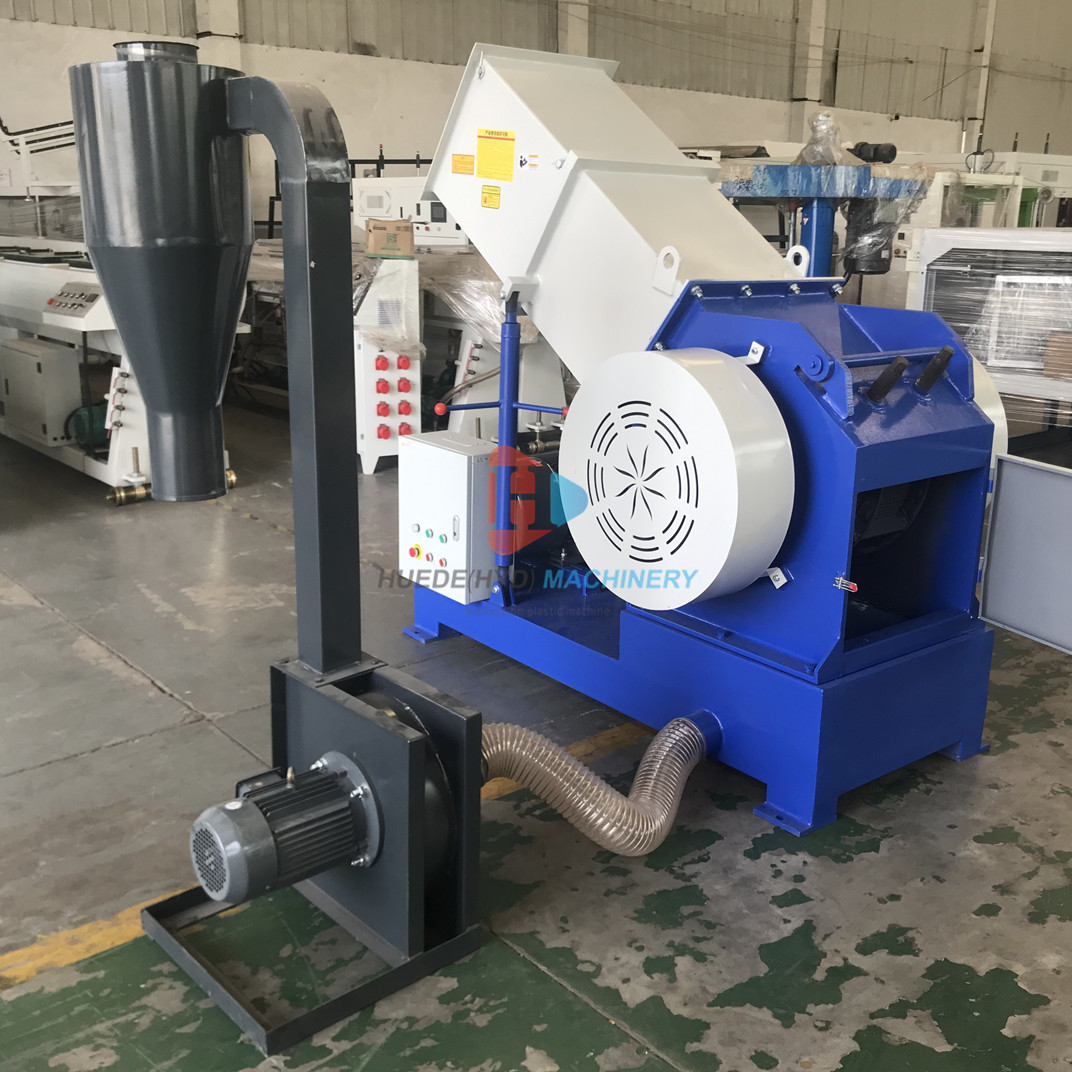

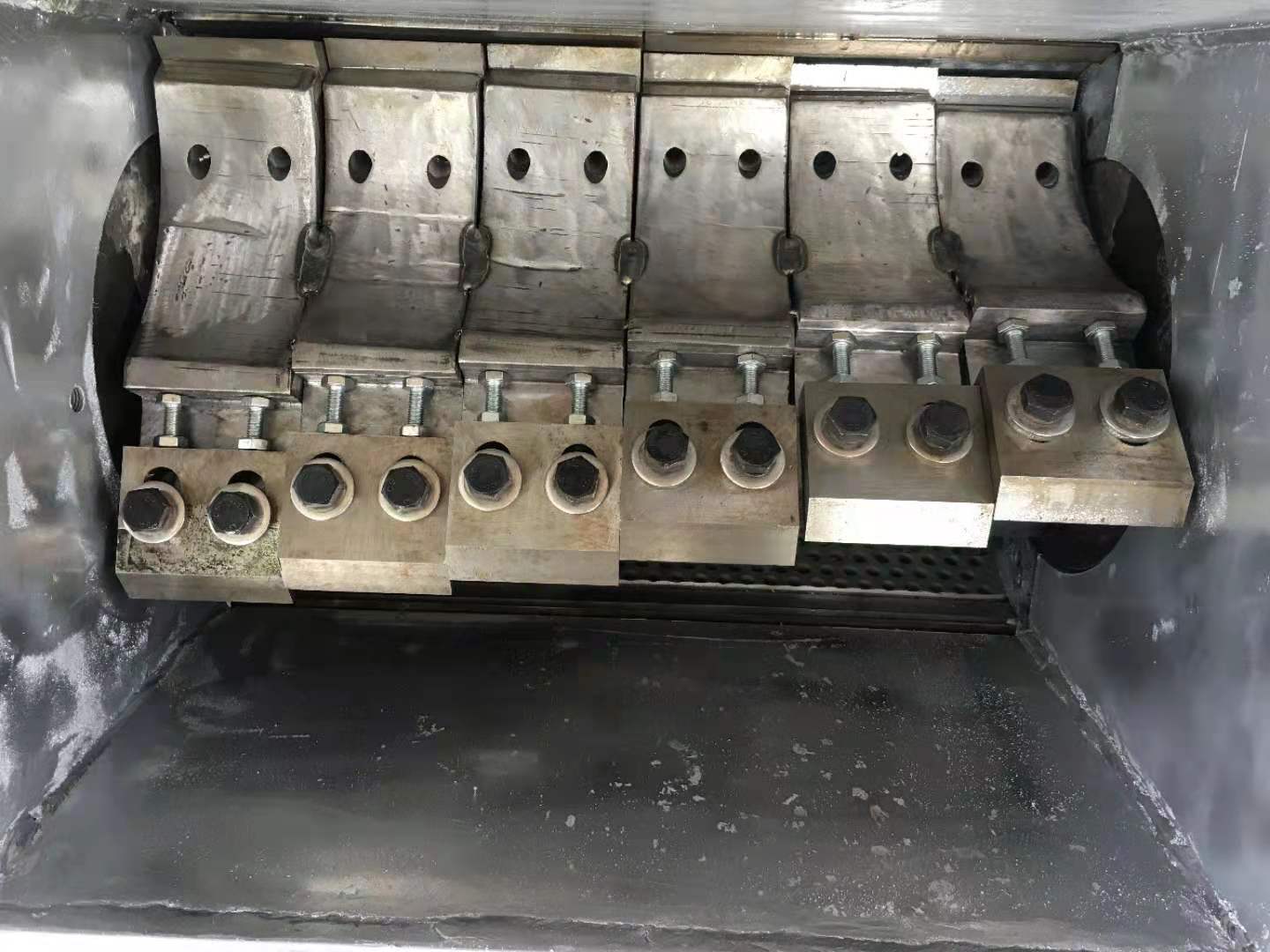

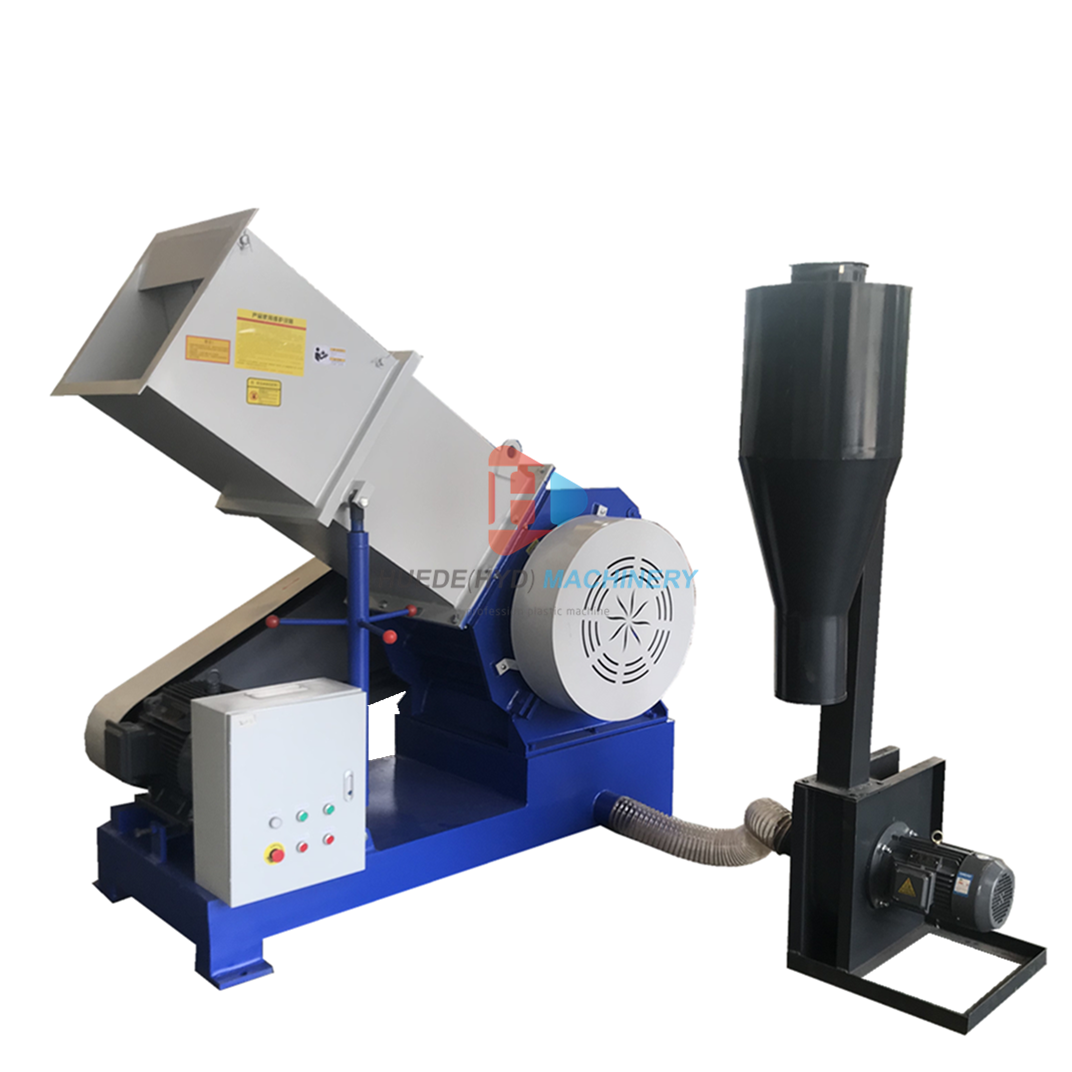

The material of movable cutter rest is SKD-ll high quality tool steel. The hardness and softness are reasonable. It is not easy to break or wear; It is fixed with high strength steel screws (grade 8.8). The structure is strong and durable.4.The PVC Pipe Crusher System consists of  motor, rotating blade, fixed blade, frame,box fan, pipe, silo, electric box, etc.
Plastic Profile Grinder Machine can be used to process more waste materials, for example, thin PE PPR pipes, PVC profiles, WPC hollow profiles, blow moldings lumps, plastic board and shells, etc.

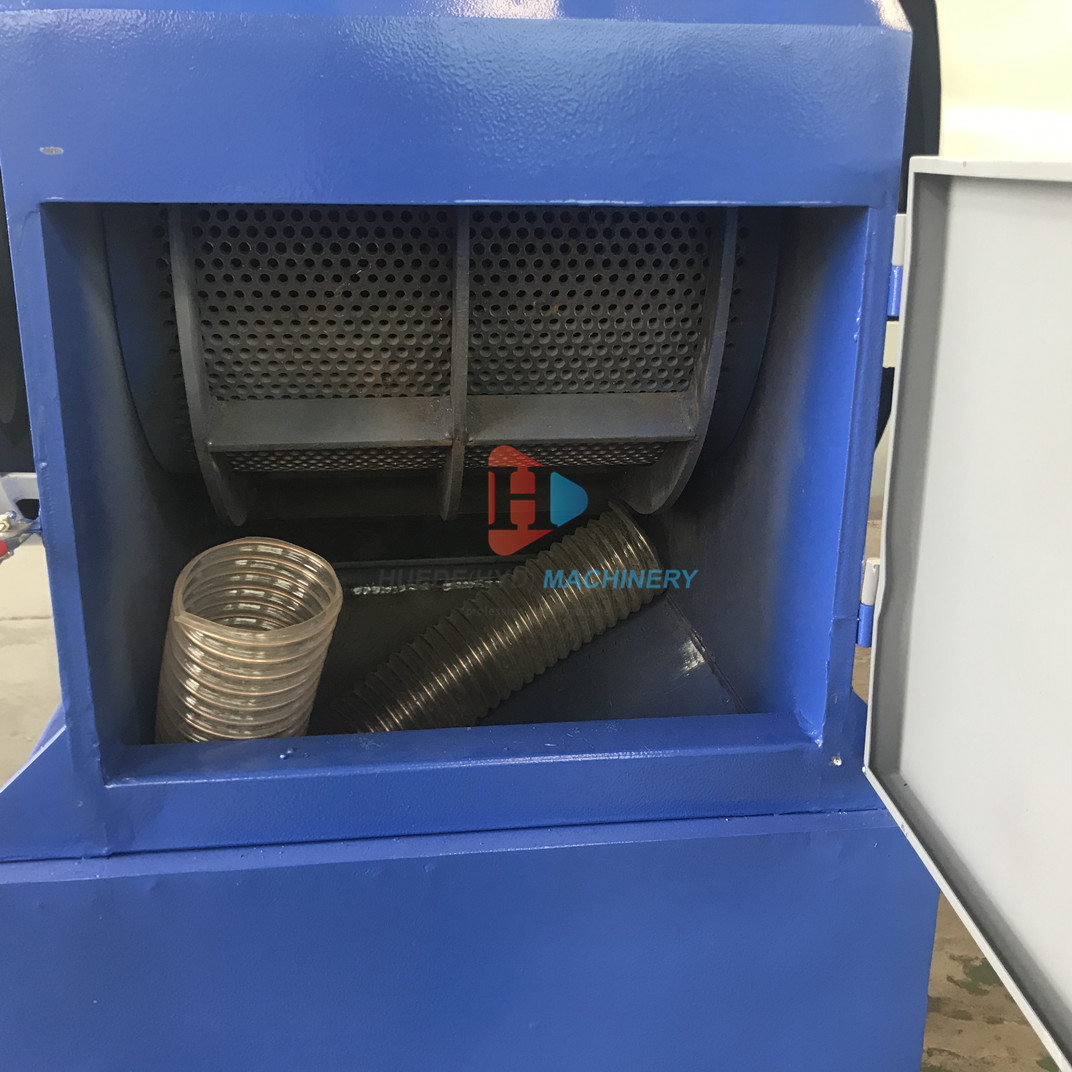

Details Images

H13152613f73f421b9c10ca1b15f96cbc5 (1).jpg

Parameter

Model		400-SP	500-SP	600-SP	800-SP
grinding chamber (mm)		410*240	510*300	610*330	815*470
grinding capacity (kg/h)		200-250	300-350	350-450	450-600
stationary cutter		2	2	4	4
rotary cutter		12	15	18	24
mesh size (mm)		Φ8	Φ10	Φ10	Φ10
power	KW	7.5	11	15	22/30
power	HP	10	15	20	30/40

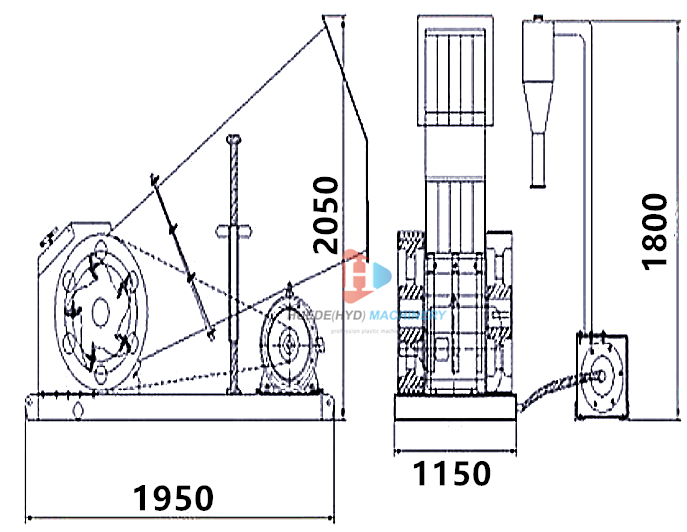

approx. dimension (L×W ×H mm)		13209401640	164010801980	194011802050	185015402680
approx. NW(kg)		604	900	1180	2100
