Low Motor Power Consumption Small Plastic Single Screw Extruder Machine

Inquire

Product Description

Machine Description

As a common extruder equipment, single screw extruder is used in plastic processing industry. What are its principle and
structure? Next from the conveyor section of the extruder, compression section, metering section to make an analysis of the principle of single screw extruder.
The effective length of single screw extruder is generally divided into three sections. The effective length of the three sections is determined according to the screw diameter, pitch and screw depth, generally divided by one third of each section.High efficiency single screw extruder adopts two-stage overall design to strengthen plasticizing function, ensure high-speed,high-performance and stable extrusion, special barrier comprehensive mixing design, ensure the mixing effect of materials, high shear, low melting and plasticizing temperature ensure high-performance, low-temperature and low-pressure metering extrusion of materials. Design concept and features: high speed and high yield Extrusion Based on high flatness and straightness.

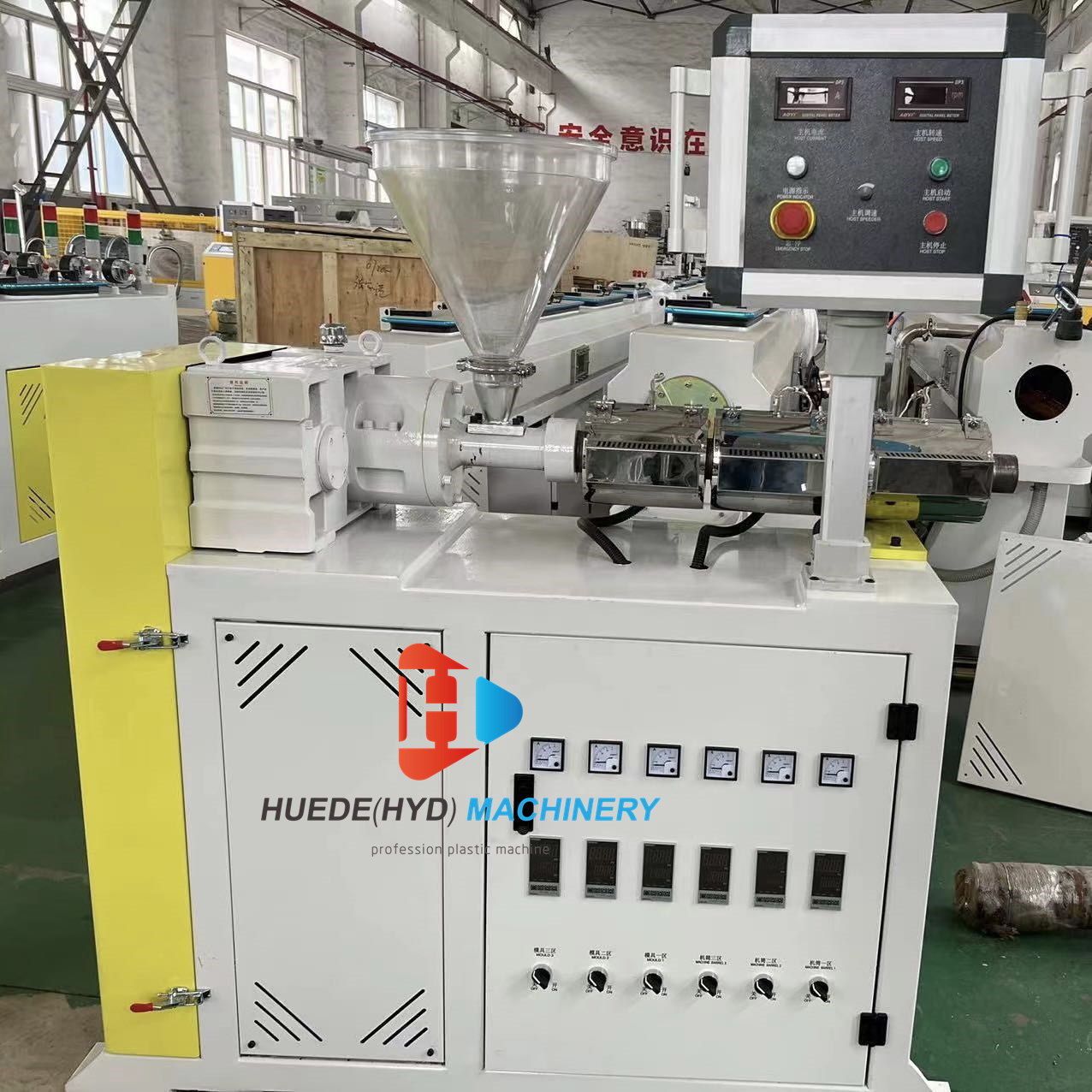

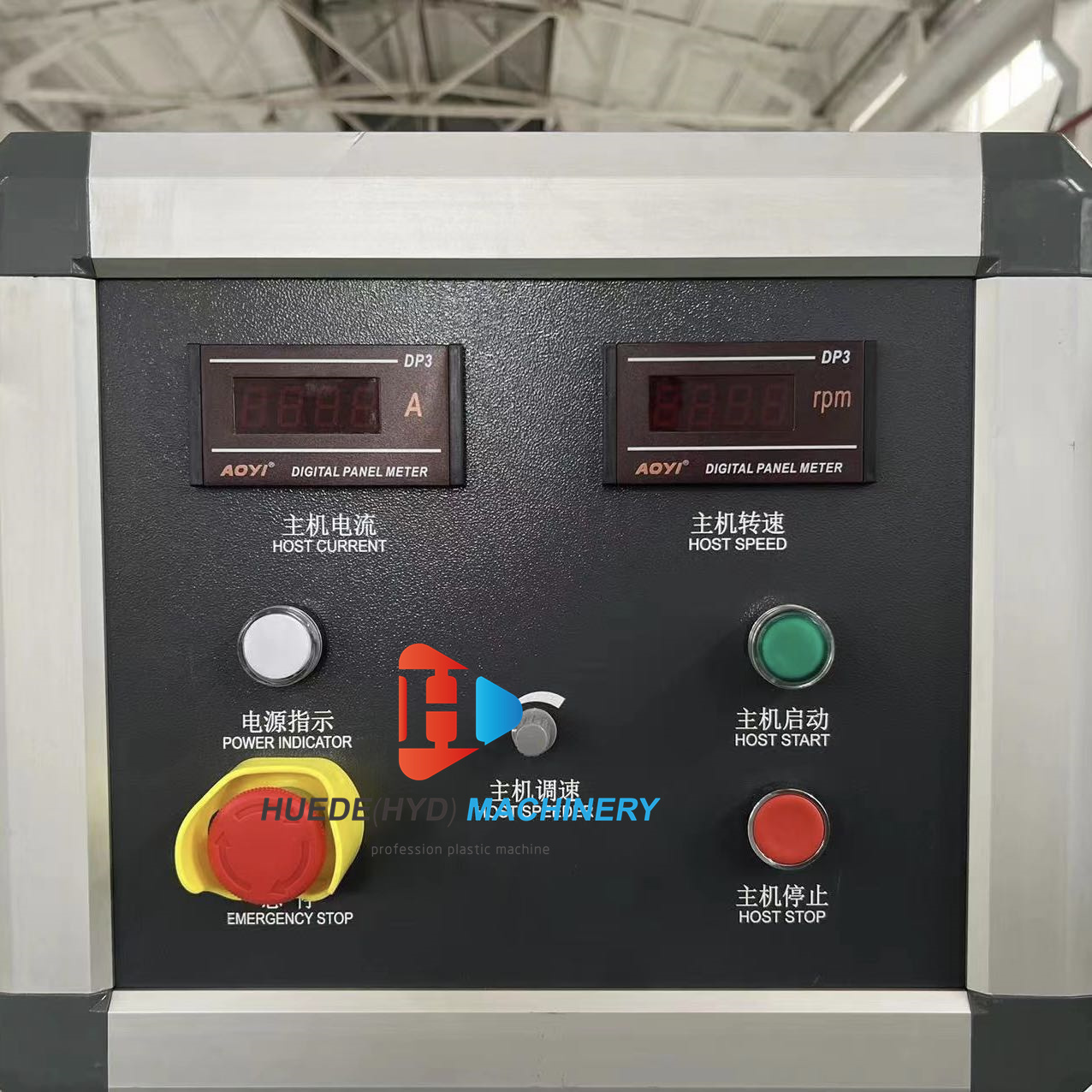

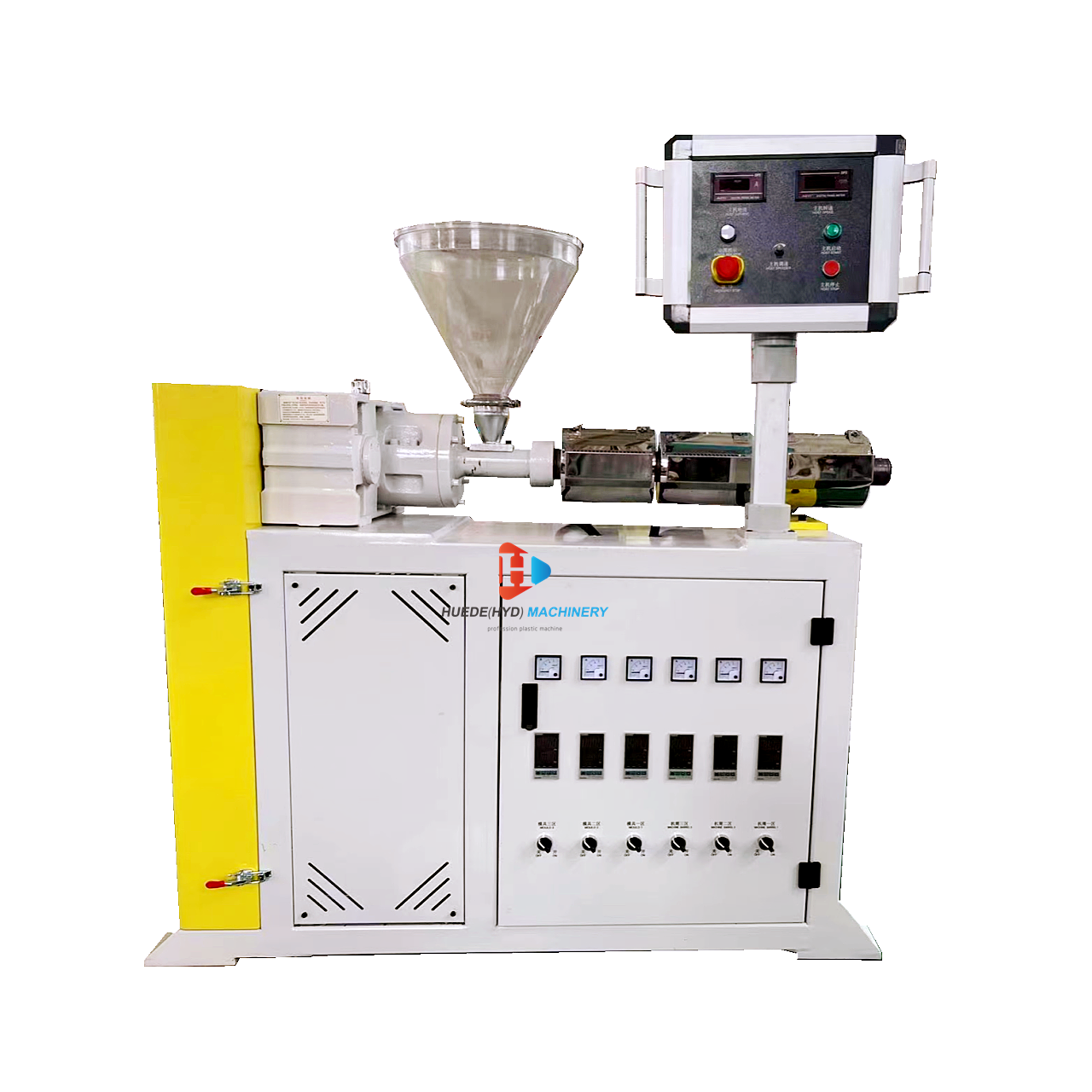

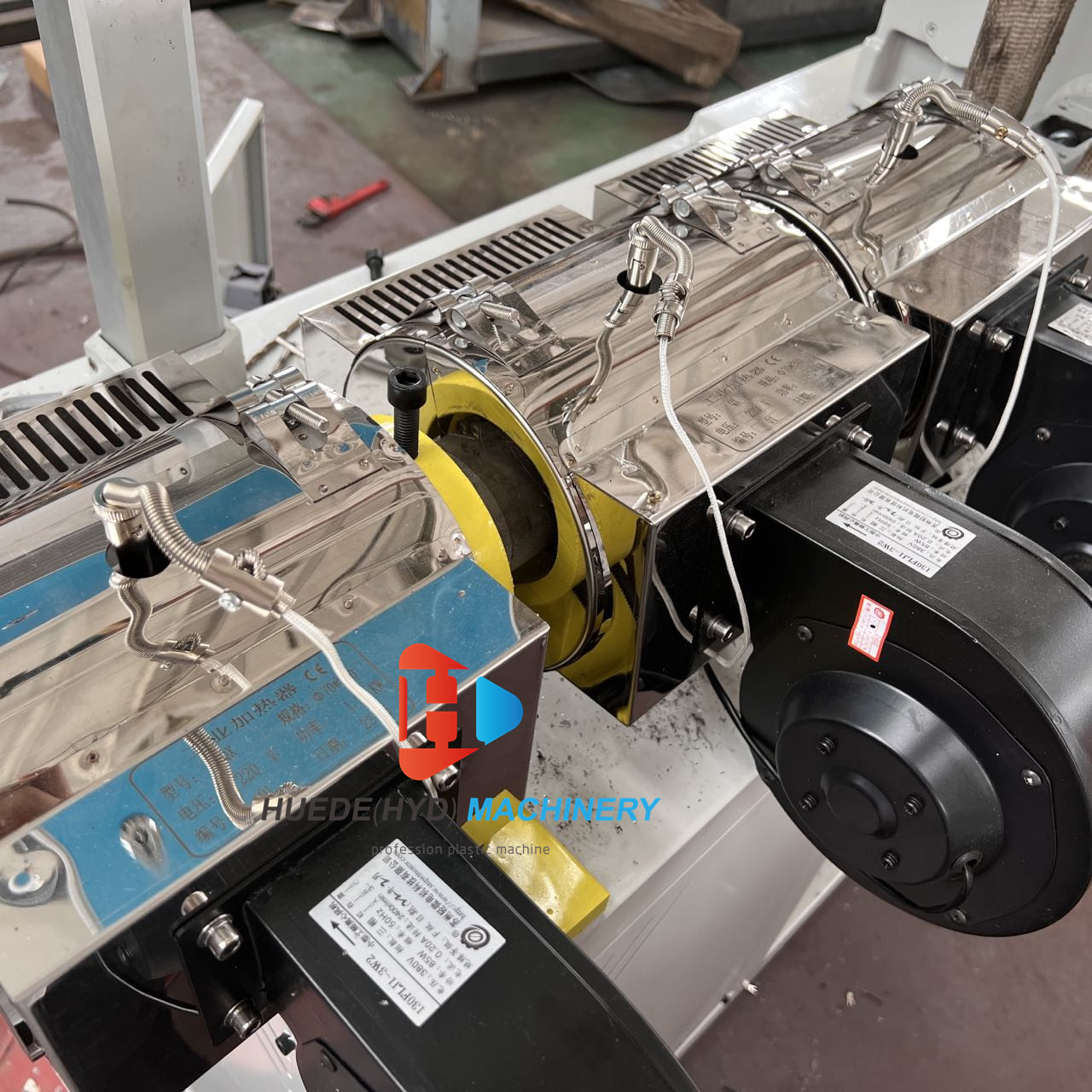

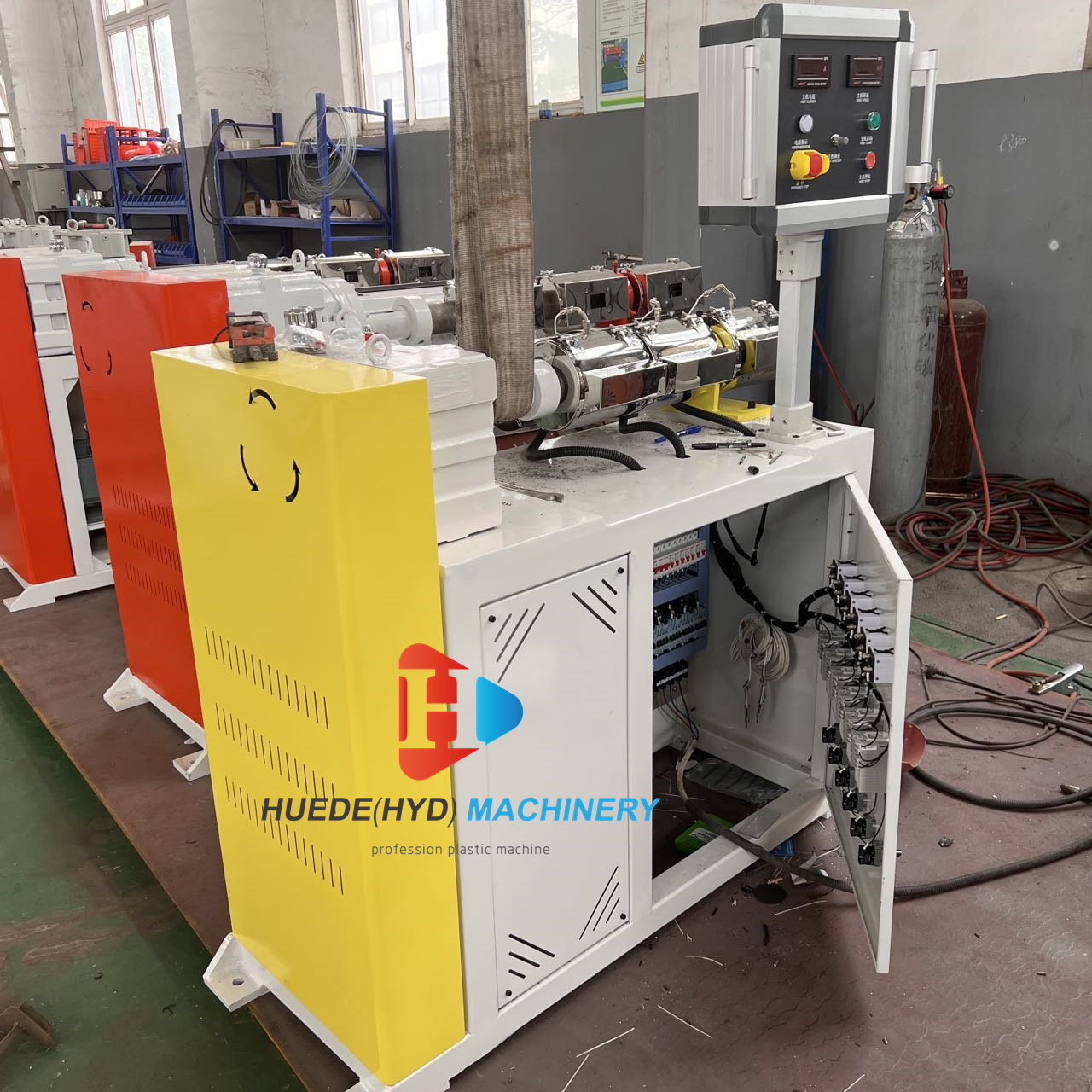

Details Images

Parameter

Model	SJ25	SJ30	SJ45	SJ65
(L/D)	25/1	25/1	25-33/1	25-33/1
Number of screw	1	1	1	1
Screw Speed(r/min)	20-120	20-180	20-150	20-150
Main motor power(KW)	0.75-1.1	2.2-3	5.5-15	7.5-75
Output(kg/h)	5	10	50-150	60-250

Low Motor Power Consumption Small Plastic Single Screw Extruder Machine
