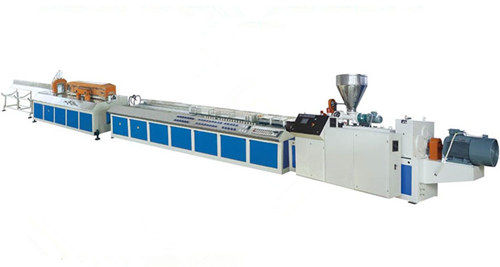

PVC cable channel trunking production line
PVC cable channel trunking production line
PVC cable channel trunking production line
PVC cable channel trunking production line

PVC cable channel trunking production line

PVC cable channel trunking production line

Inquire
  • Product Description

Product Description

Durable PVC Trunking Machine

1.Plastic Trunking Profile Making Machine  is used to produce PVC Trunking ,it also can make other pvc profile,just need to change the suitable mould. 2.We are professional to manufacture PVC Cable Channel Making Machine,PVC Wire Trunking Machine Line can supply you turnkey solution include supplying machines, installation, training staff, material purchasing help, help send Chinese production master etc.3. We can show you PVC Trunking Making Machine in our factory and our customer's factory.  4. The most important thing is that we have manufacturing Plastic Trunking Profile Making Machine for over 10 years, we are familiar with all production process and we know how to make machines perfect and how to reduce production cost.formula accuracy.
Details Images

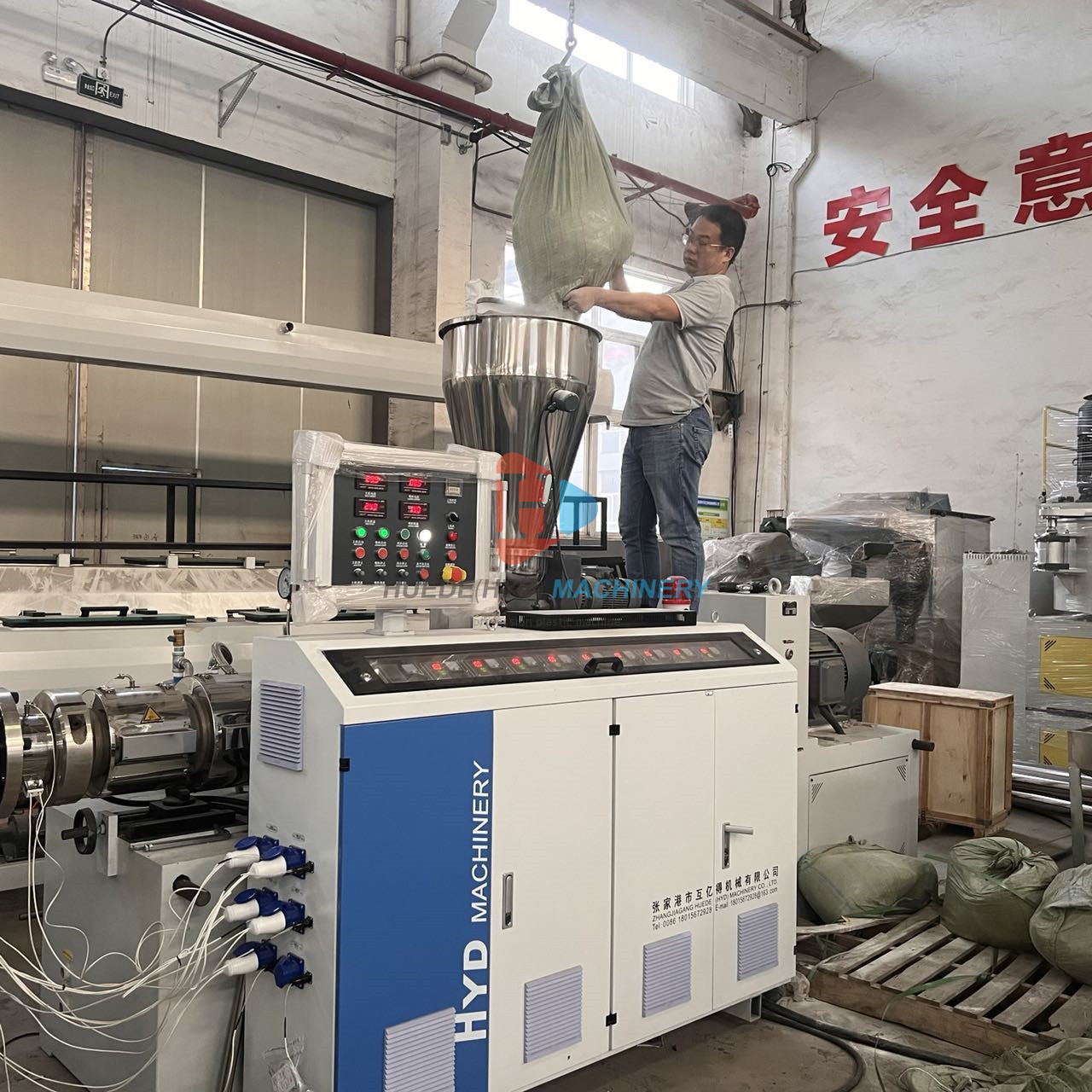

Conical Double Screw Extruder
Screw Material:38CrMoALA
Screw Diameter:51mm,55mm or 65mm
Main Motor Power:18.5kw,30kw or 37kw
Inverter:ABB Brand
Motor Brand:Siemens

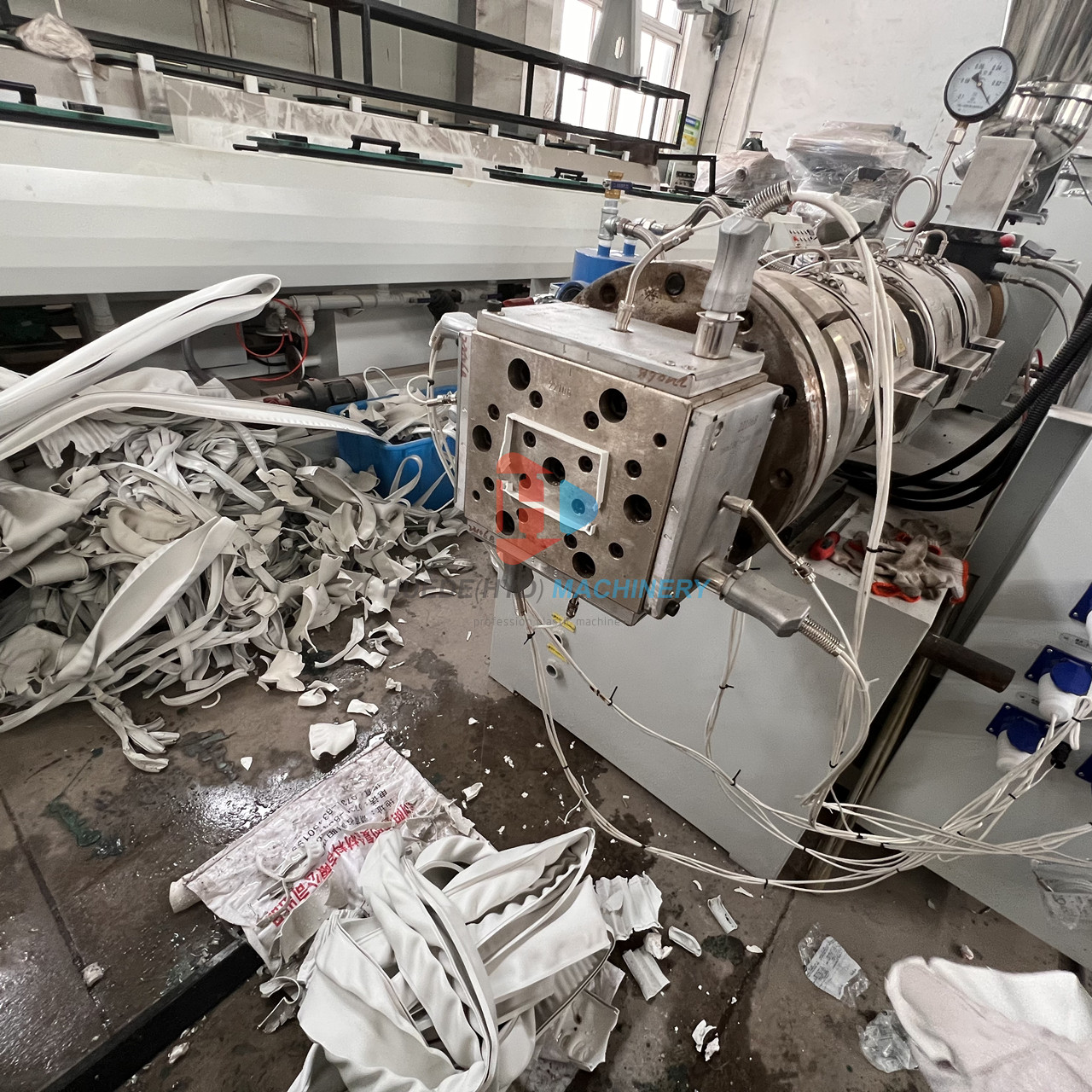

Mould
Material:40Cr surface Chrome Plate
Mould heating:stainless steel heating device
Heating Power:6KW

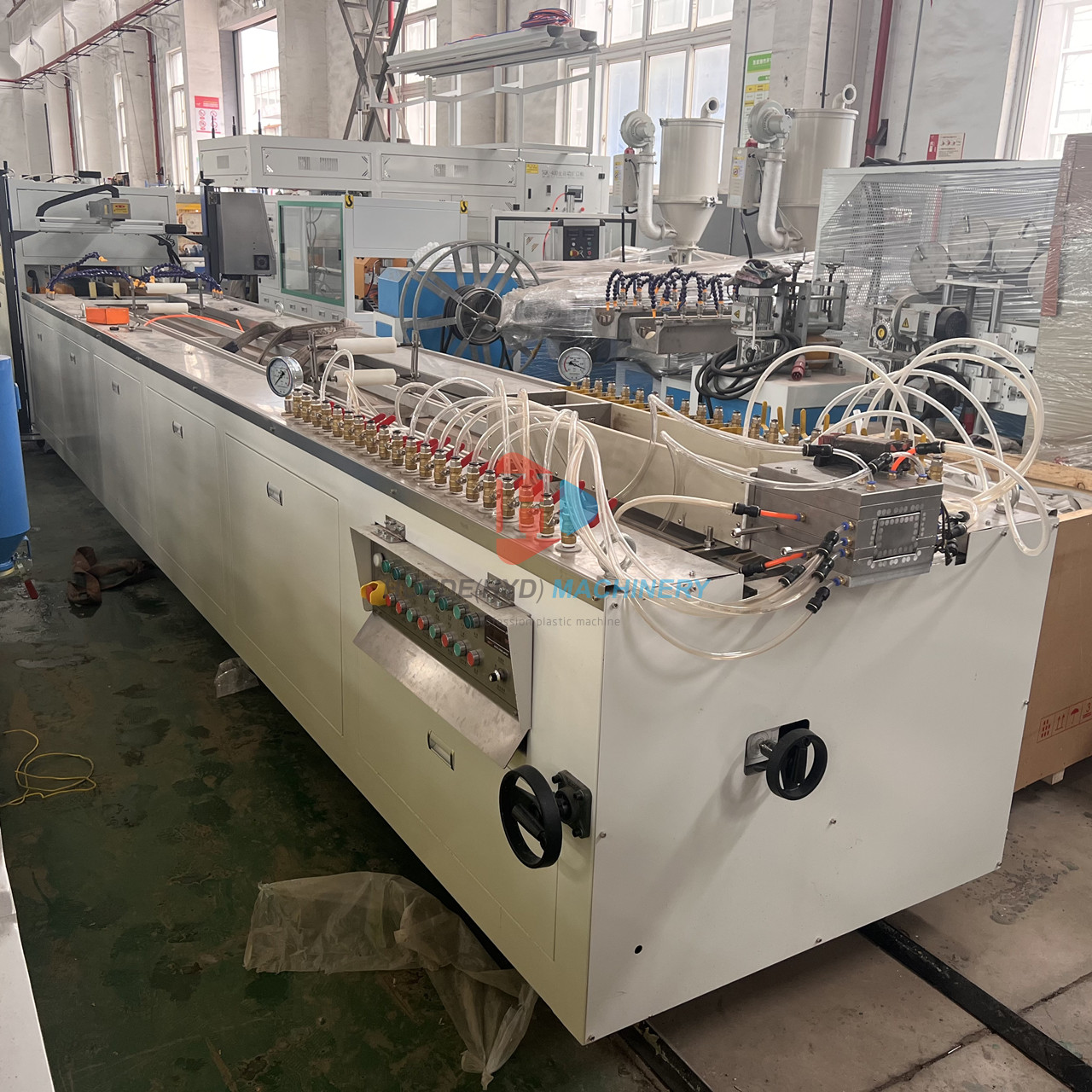

Vacuum Calibration Platform
Lengh:3000mm~6000mm(customzied)
Width:700mm
Vacuum Pump Power:3KW
Water Pump Power:3KW

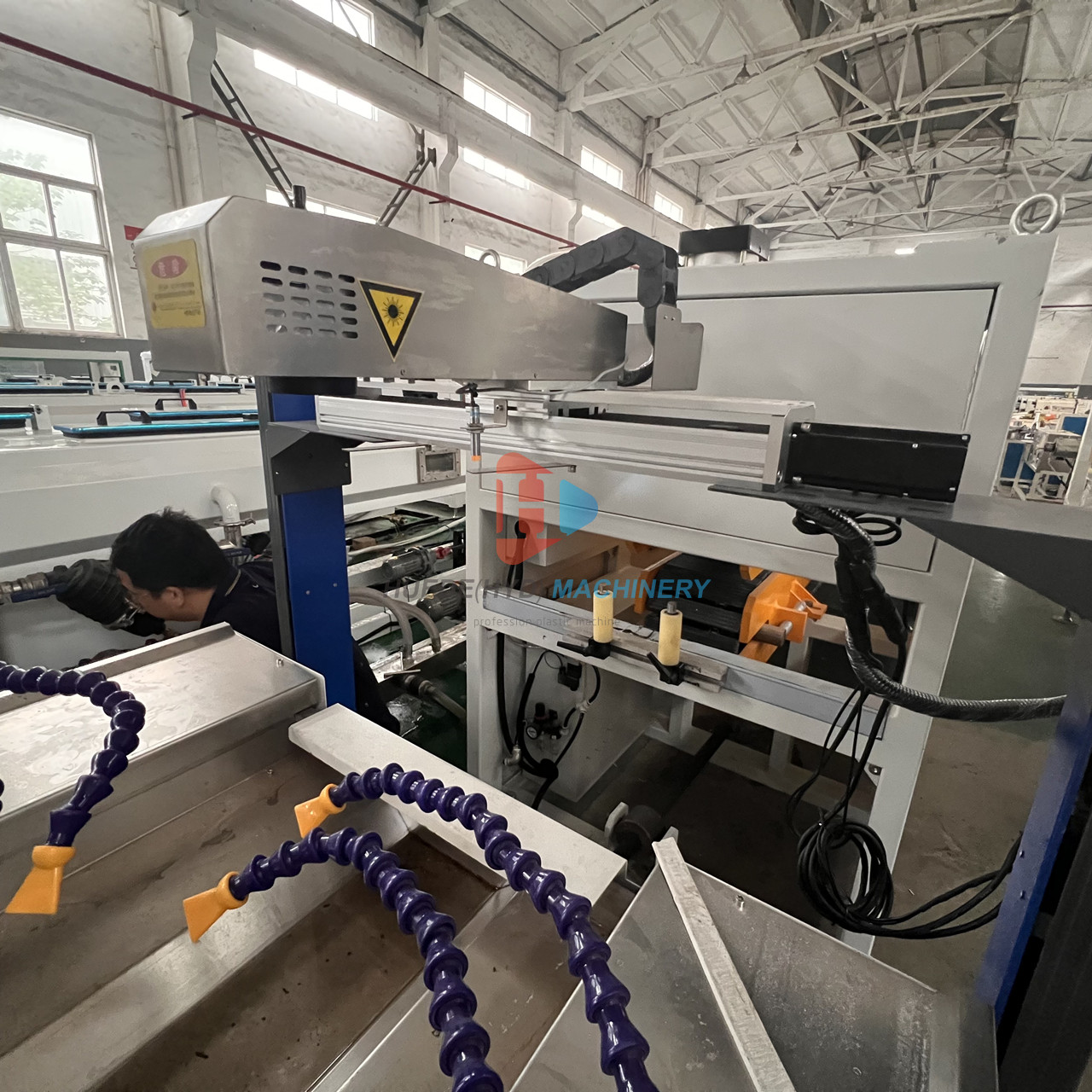

Laser Printer
Motor:30W

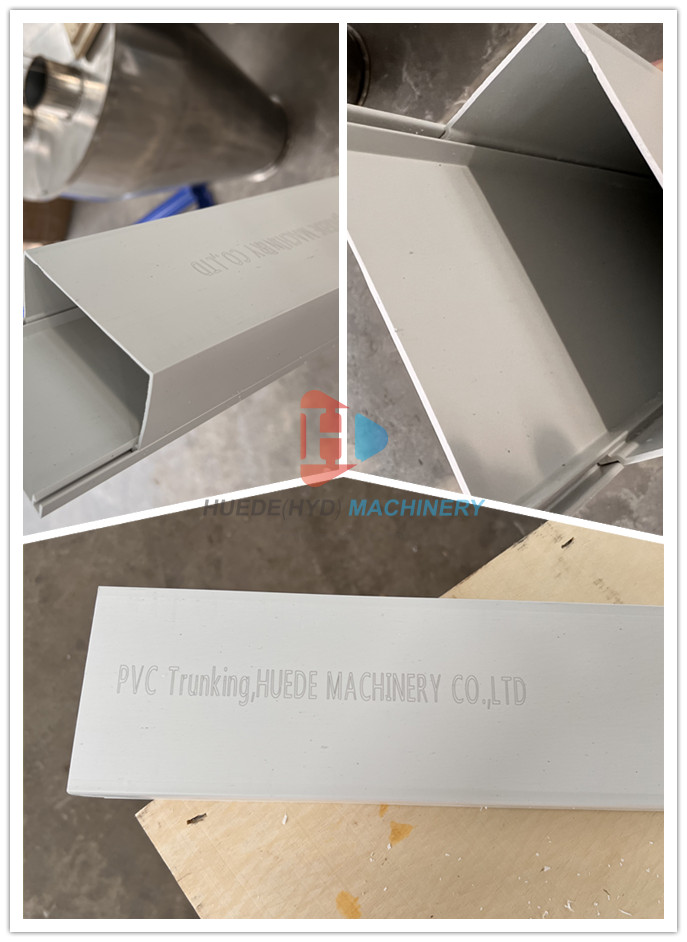

You can Print what you like on Trunking(such as your Company name ,trunking size, Tel number Etc.

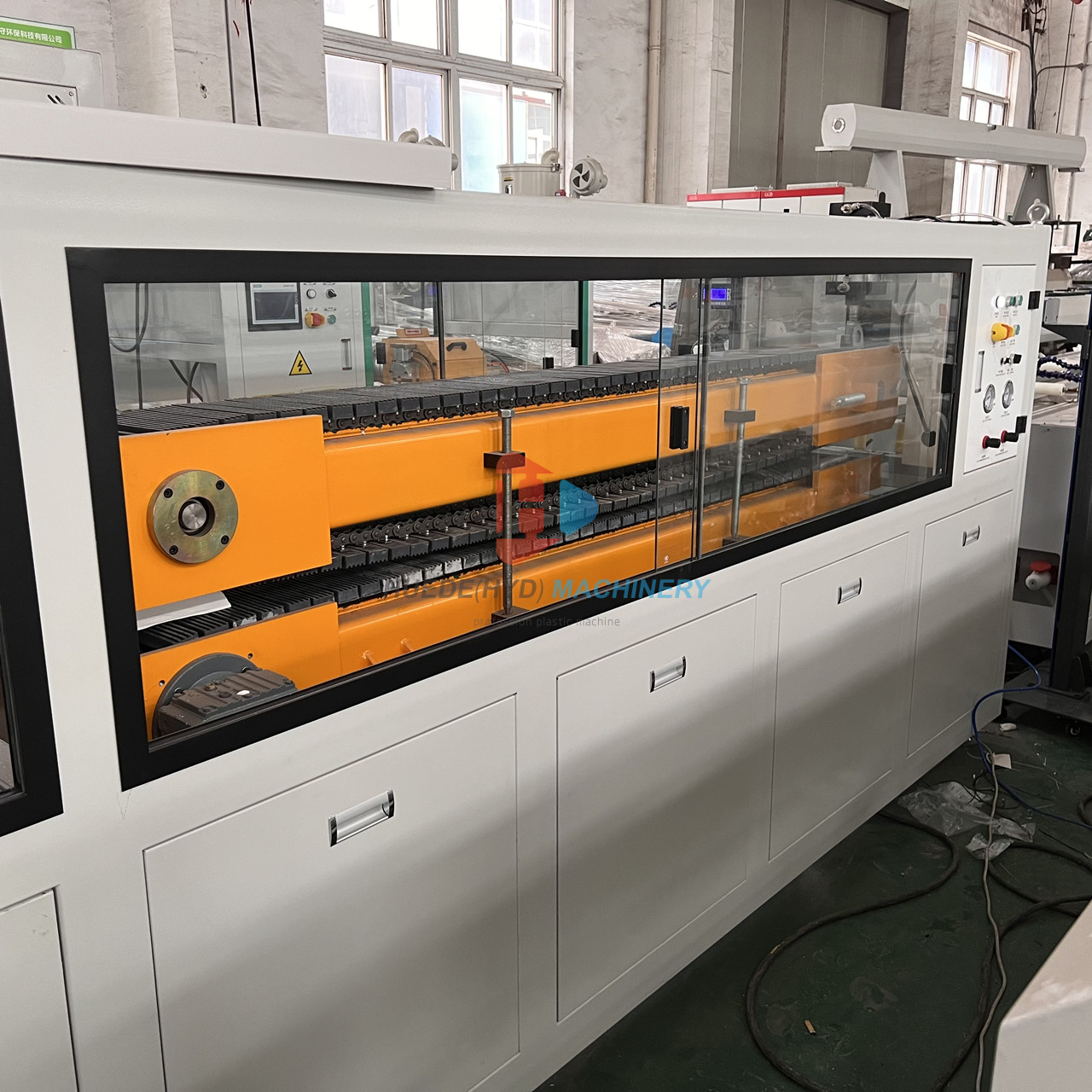

Hauling Off Machine
To hauling off the PVC Trunking

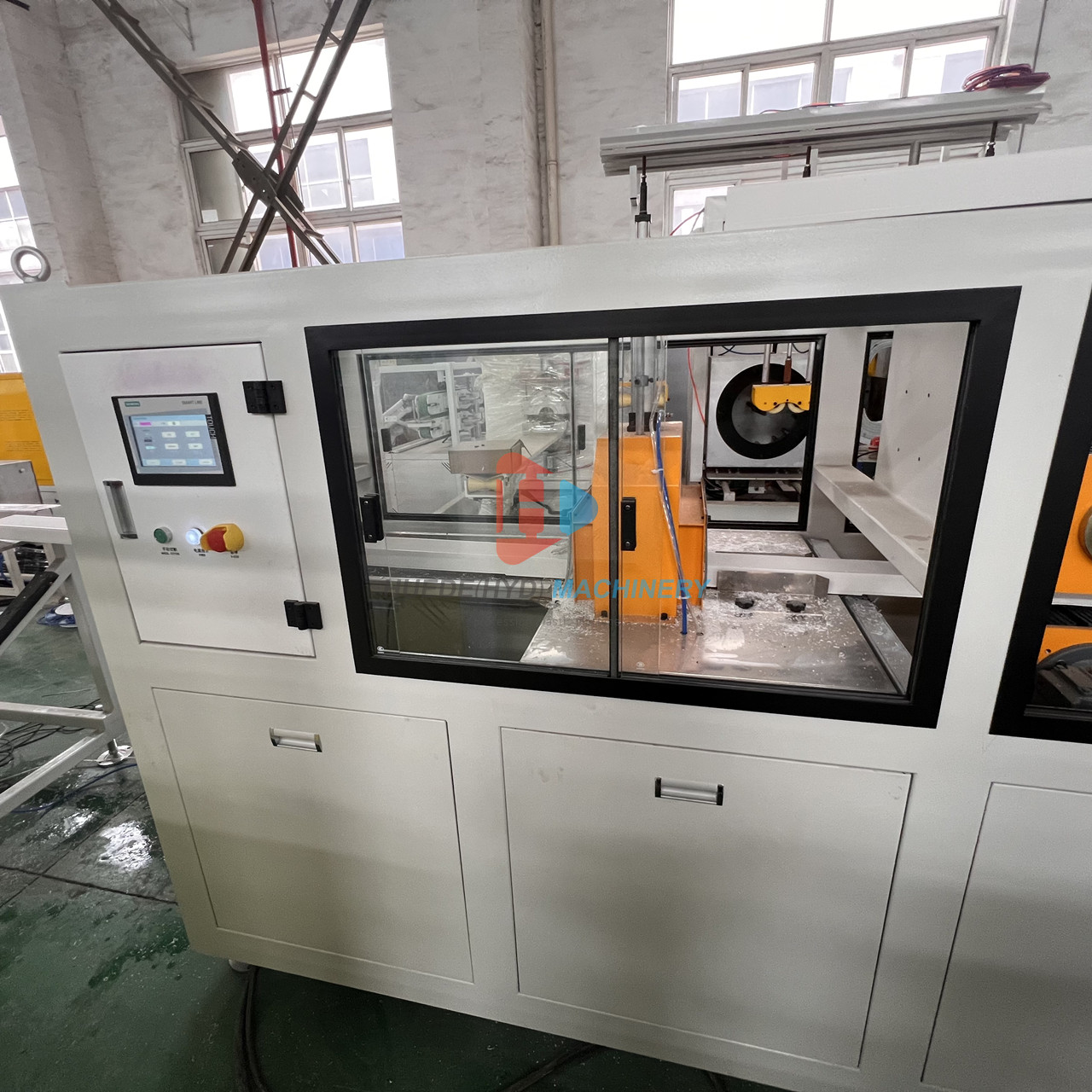

Cutting Machine
:Cutting PVC Trunking

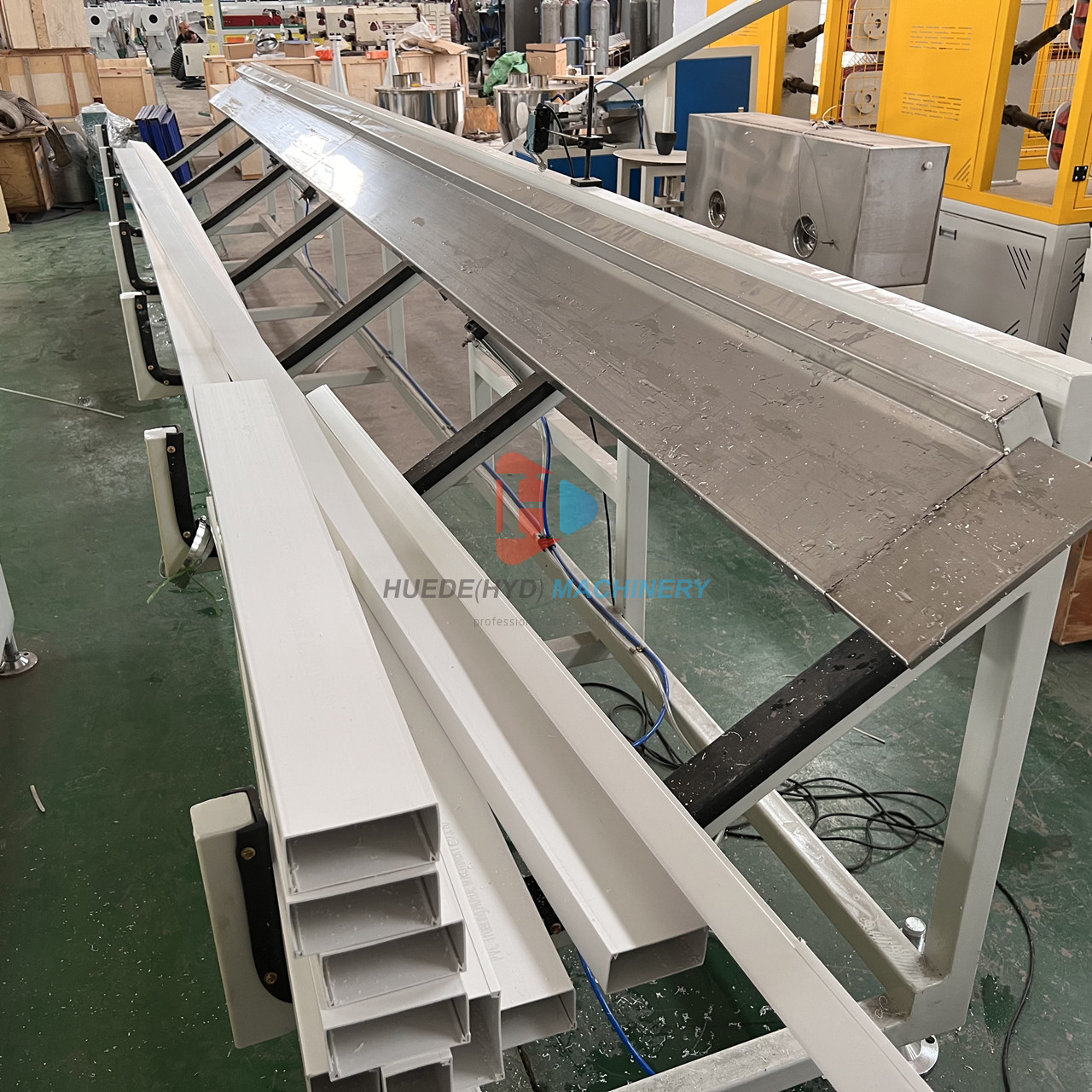

Stacker
Material: Sus304 Stainless steel
Length: 6000mm
Feature and List

PVC Cable Channel Making Machine

* speed controlled by inverter, saving power and easy to adjust speed. * extruder temperature controlled by Omron intelligent controller, temperature  fluctuation self adjusting.
* low power consumption: lowest total production line consumption 30kw/hour. * economical price, suitable for large scale investment.
Item
Machine name
quantity
1
 Extruder
1set
2
Mould
1set
3
Vacuum Calibaaration Platform
1set
4
Laser Printer(optional)
1set
5
Hauling Off Machine
1set
6
Cutting Machine
1set
7
Stacker
1set
