PVC high speed mixer unit

plastic mixers are used in mixing,stirring, drying, coloring materials in plastcs rubber, and chemical industries.
SHR series mixers adopt advanced design, so it is convenient and safe for operation. It offers small size, light weight, high efficiency, low energy consumption and low noise.

Inquire

Product Description

Machine Description

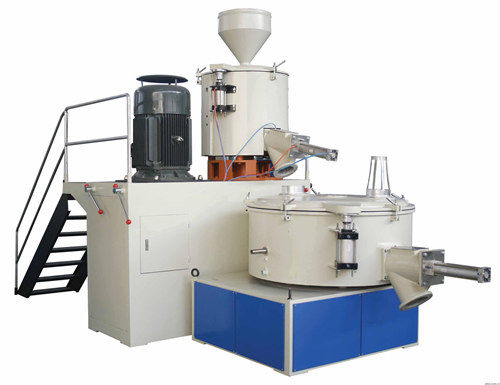

SHR-L series mixer units are widely used in mixing ,drying,coloring for all kinds of resin such as PVC,PP,PE.They can also be applied in dryness of ABS,polycarbonate,and mixing hydroxybenzene,alde hyde resin.This unit is composed of one hot mixing pot and one cooling pot,the materials from hot mixer will be filled into the cooling mixer automatically,so it can eliminate humidity,and protect from agglomeration.

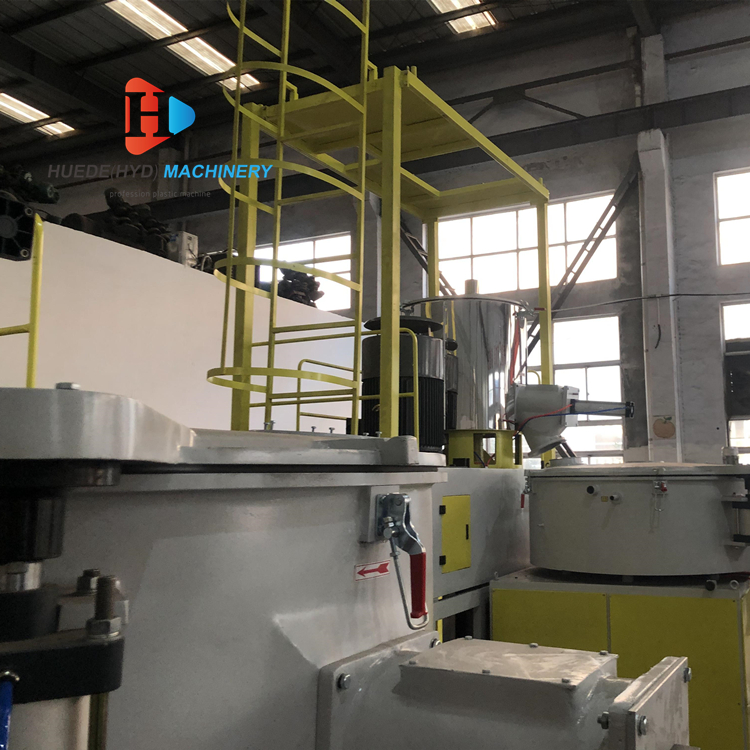

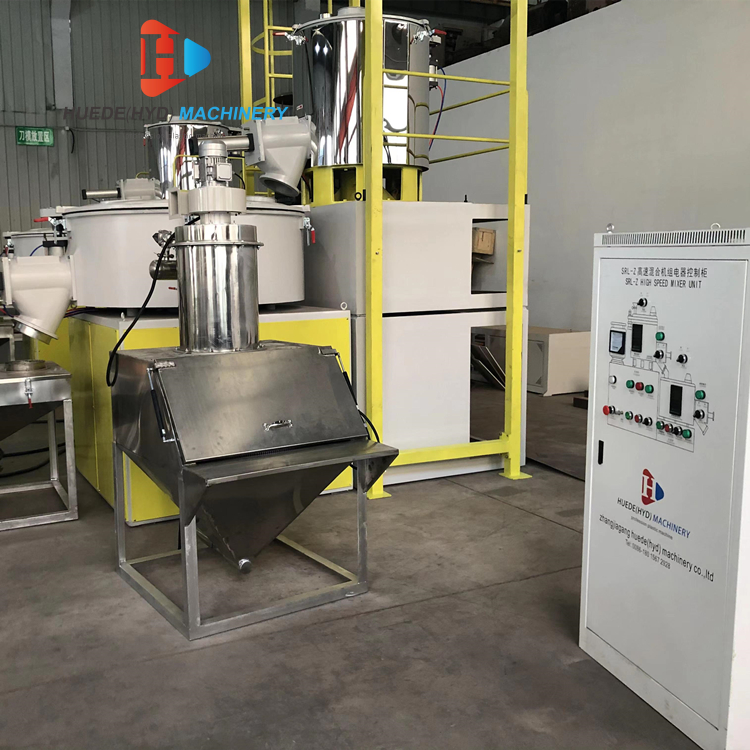

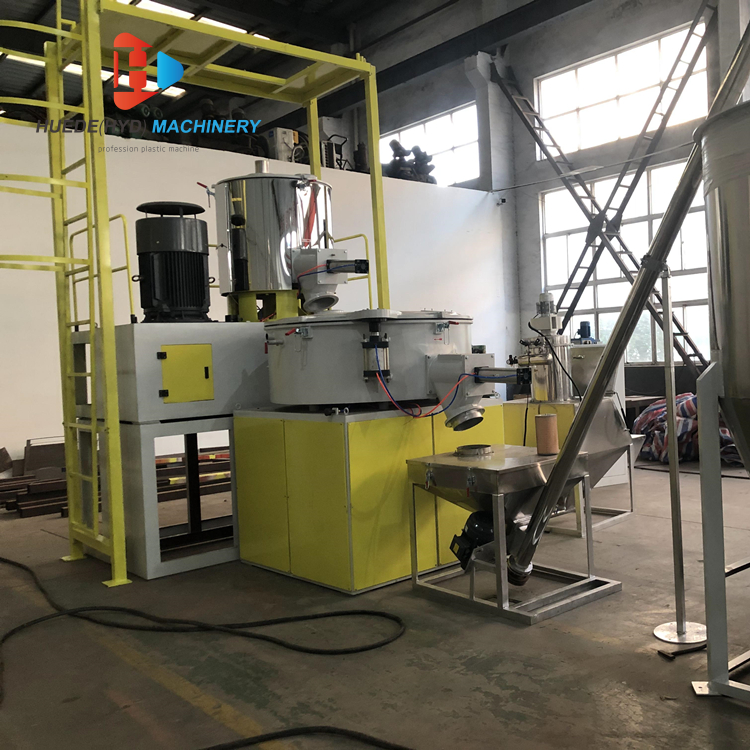

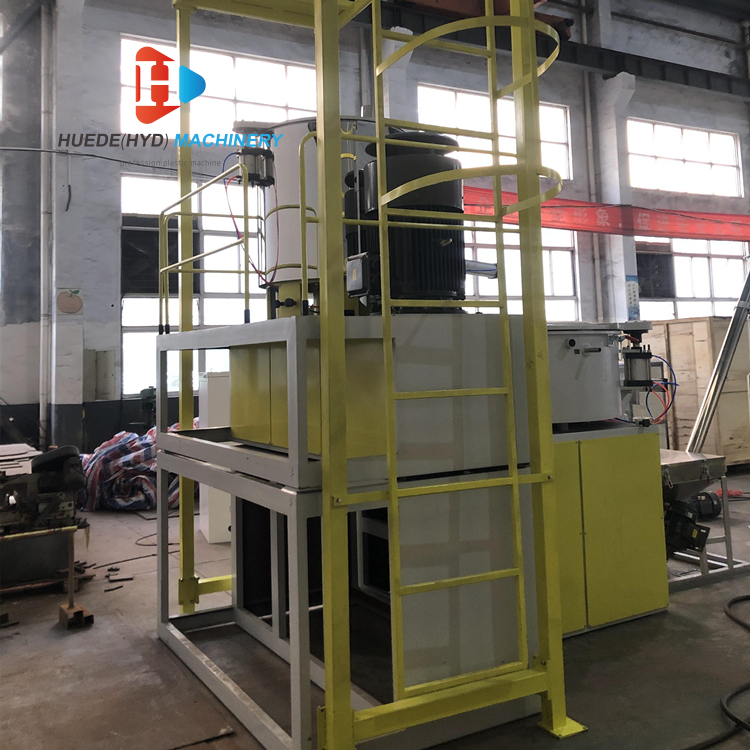

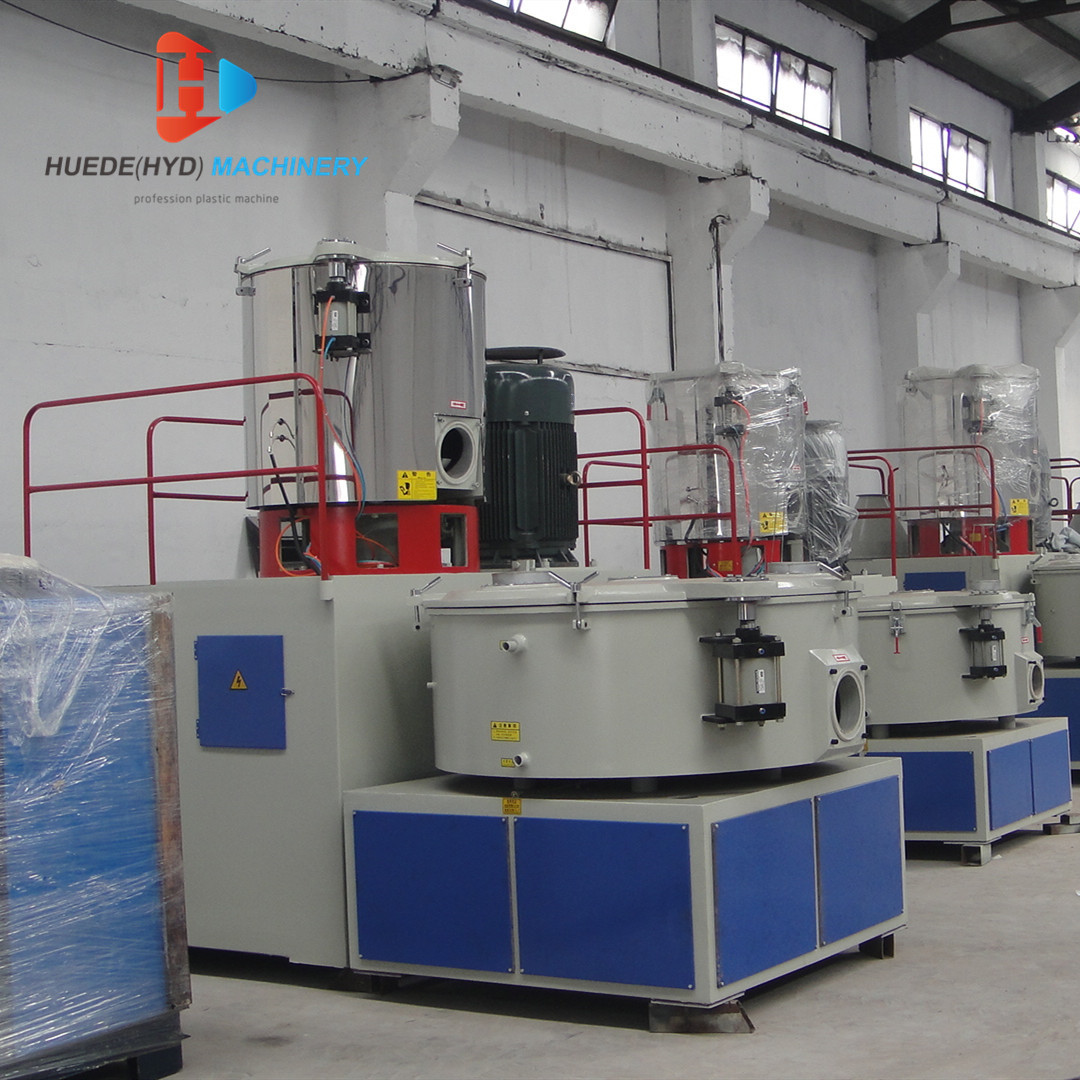

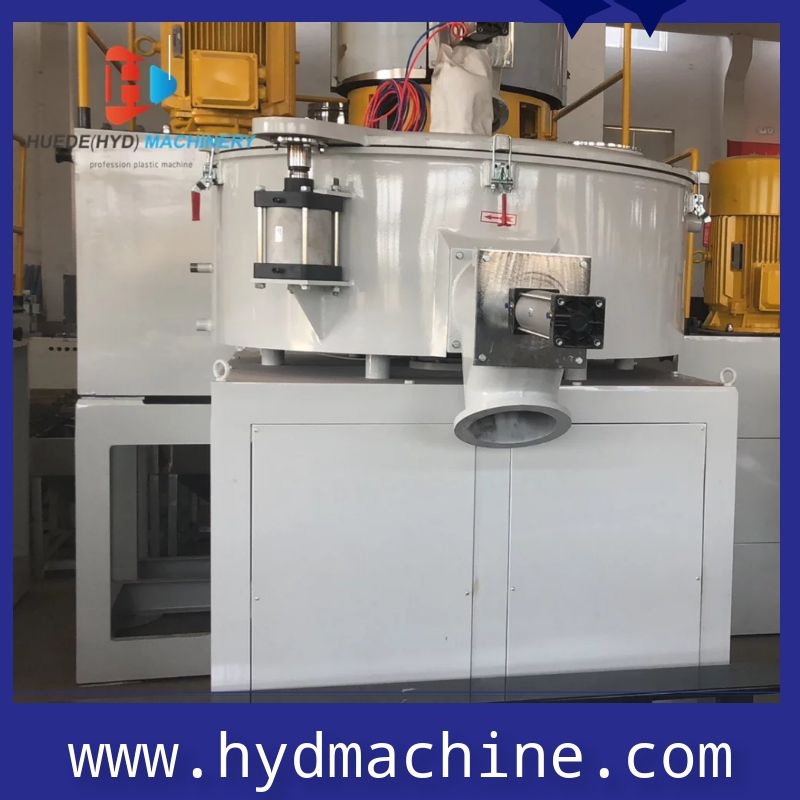

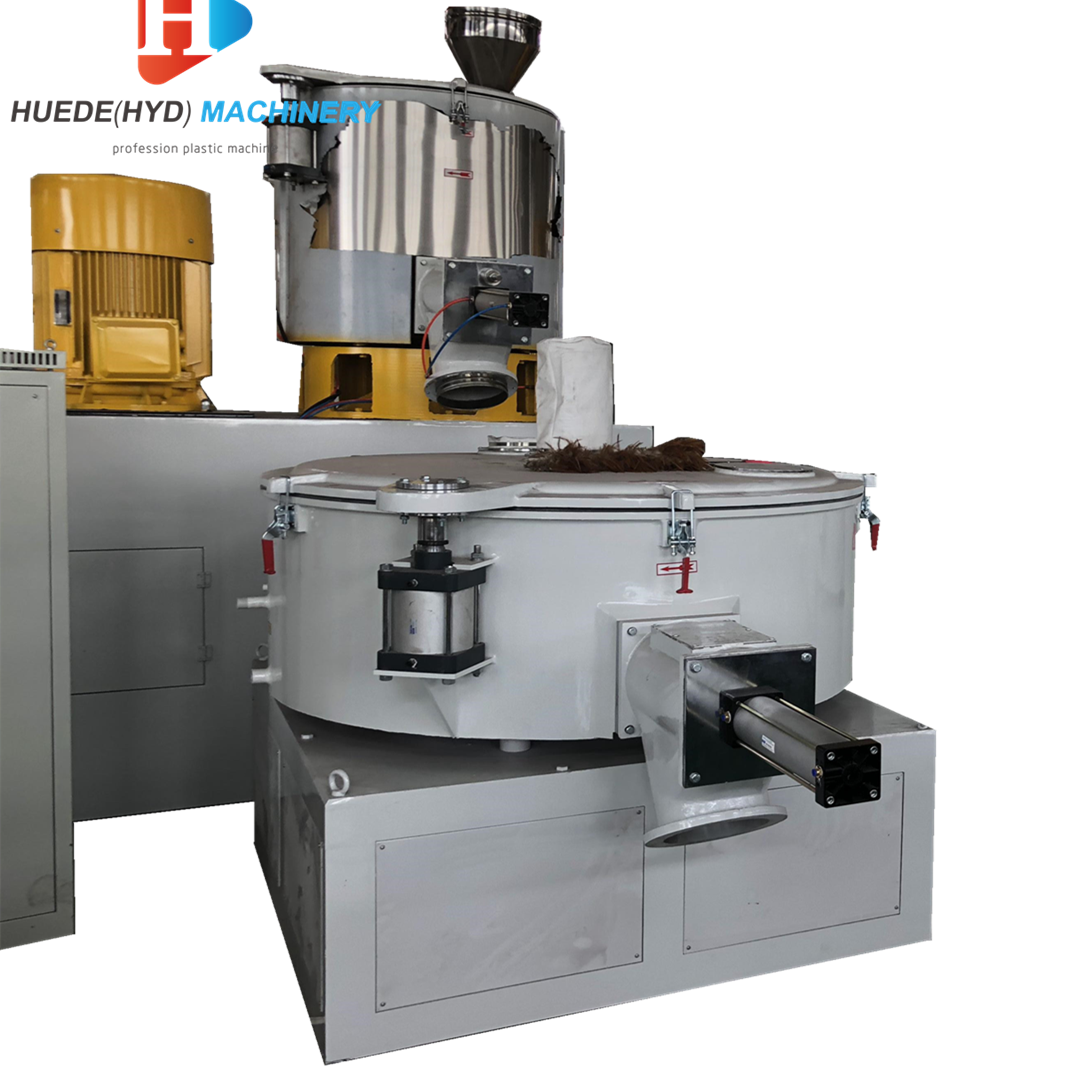

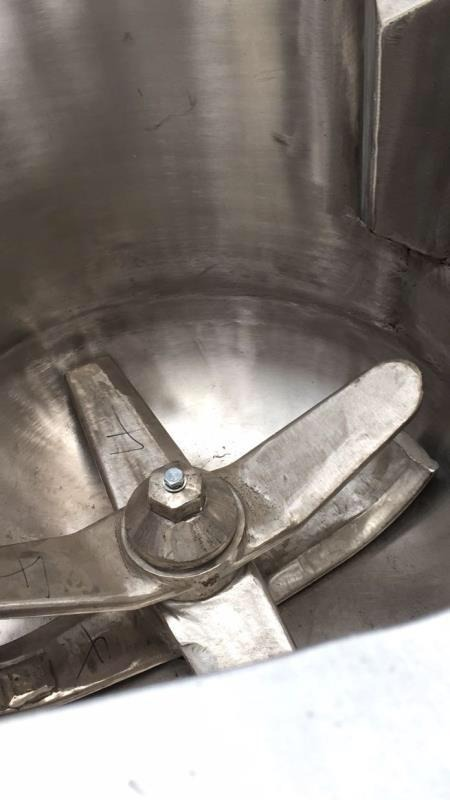

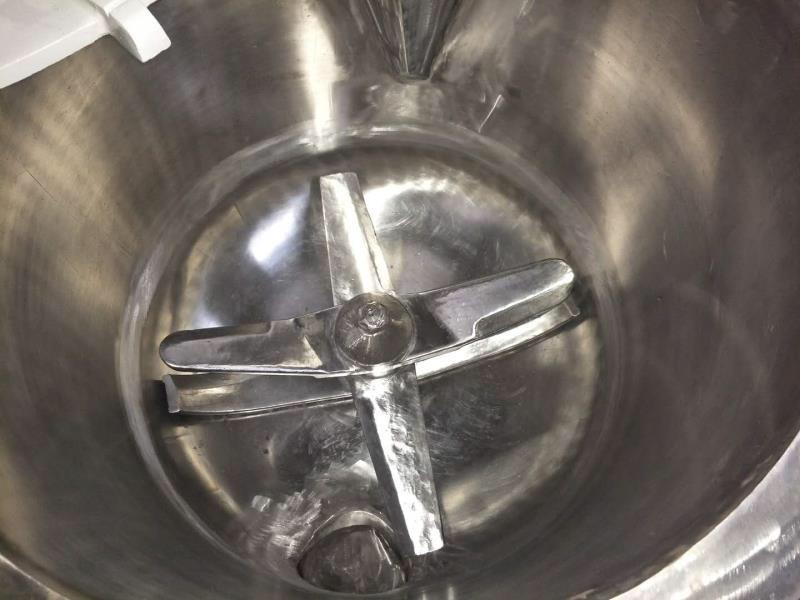

Details Images



Parameter

Model	Volum(L)	Effective volume(L)	Speed(r/min)	Motor Power (kw)
SHR-L50/100	50/100	32/75	1013/118	11/7.5
SHR-L100/200	100/200	75/130	1300/130	22/7.5
SHR-L200/500	200/500	150/320	1000/110	42/11
SHR-L300/600	300/600	225/380	960/100	55/11
SHR-L500/1000	500/1000	374/640	930/71	67/15
