800/2000 PVC High Speed mixer unit

You are here:Home >> Products >> Pvc mixer

800/2000 PVC High Speed mixer unit

  • Product Description

Products Description

High Speed Horizontal Mixer

PVC Dry Powder Mixer is used in mixing, stiming, drying, coloring and other technique of plastics, rubber, chemicals for daily use. PVC High Speed Heating Mixer Machine is an ideal advanced equipment of producing plastics plate, pipe, special-shaped material and degradation plastics.
The PVC Dry Powder Mixer is developed through introducing, digesting and absorbing foreign advanced technology. The minor vacuum mixing principle is adopted in mixing materials. The electric elements all adopt imported famous ones and adopt PLC control. PVC High Speed Heating Mixer Machine has many advantages, such as high auto level, fast mixing. Its blades are precisely cast with stainless steel and passed the dynamic and static balancing test. Especially, the blades of its cooling machine adopt the most advanced screw stirring structure in the world. There is no deal angle in the whole vessel. It has advantages, such as fast cooling, discharging thoroughly, its mixing efficiency has reached foreign advanced level.

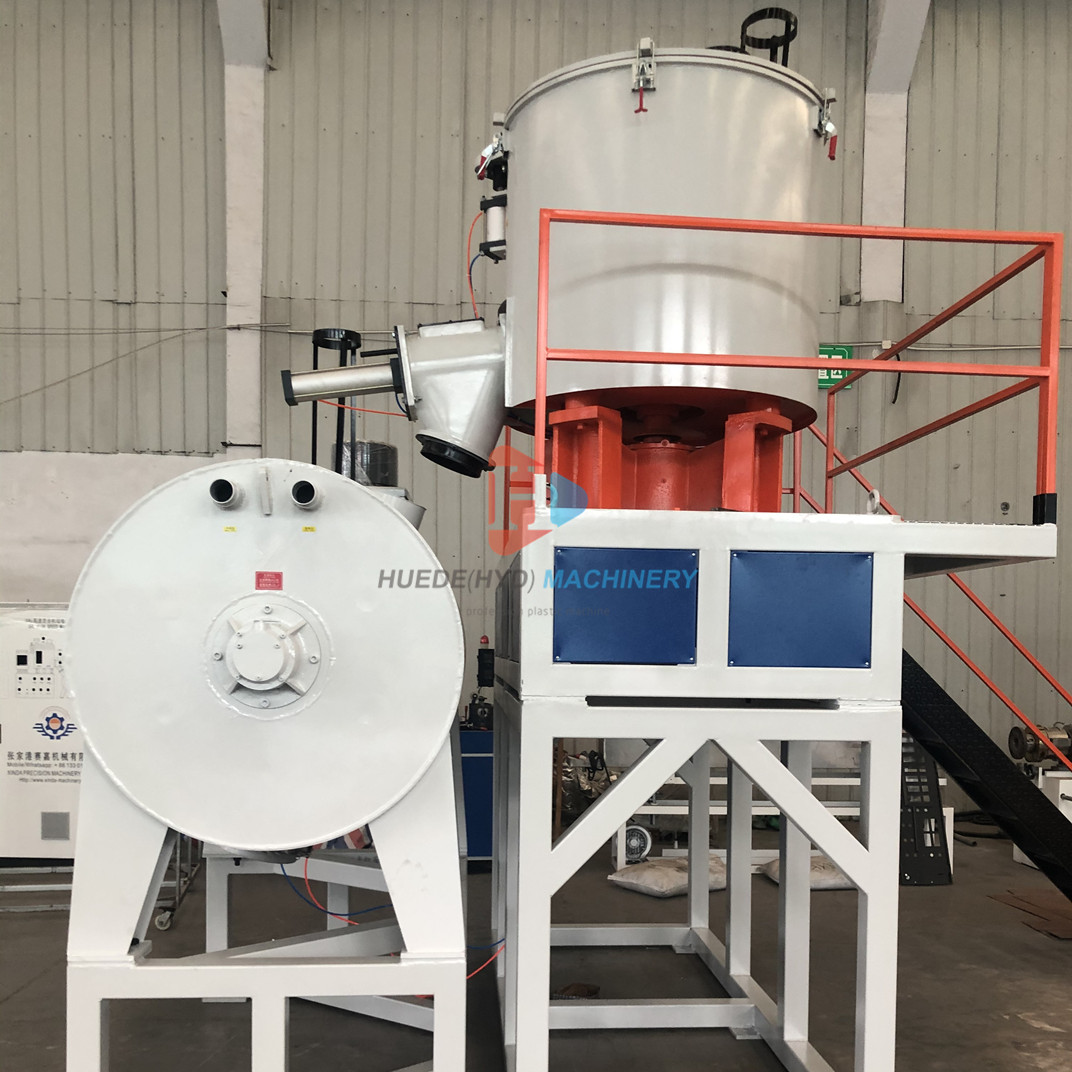

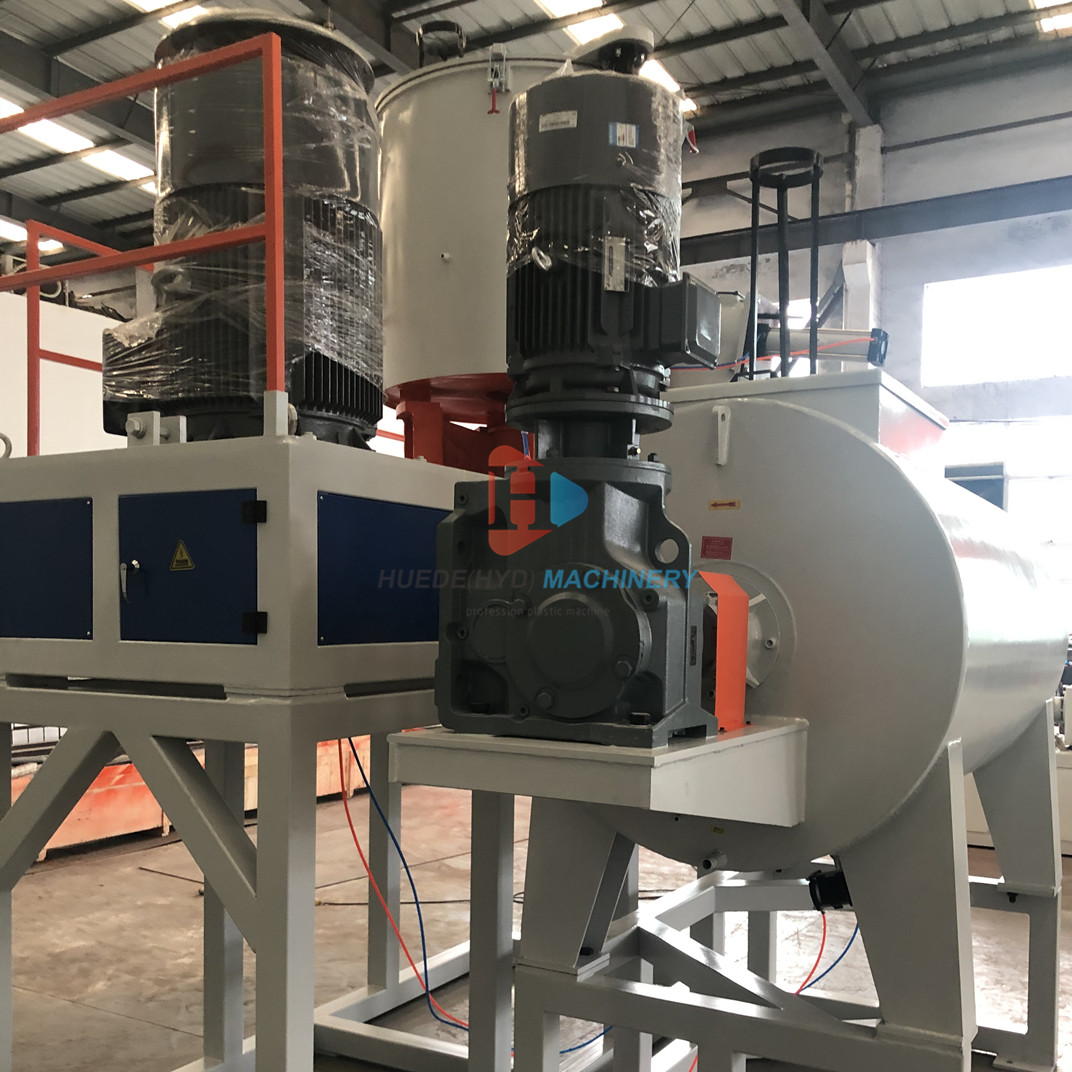

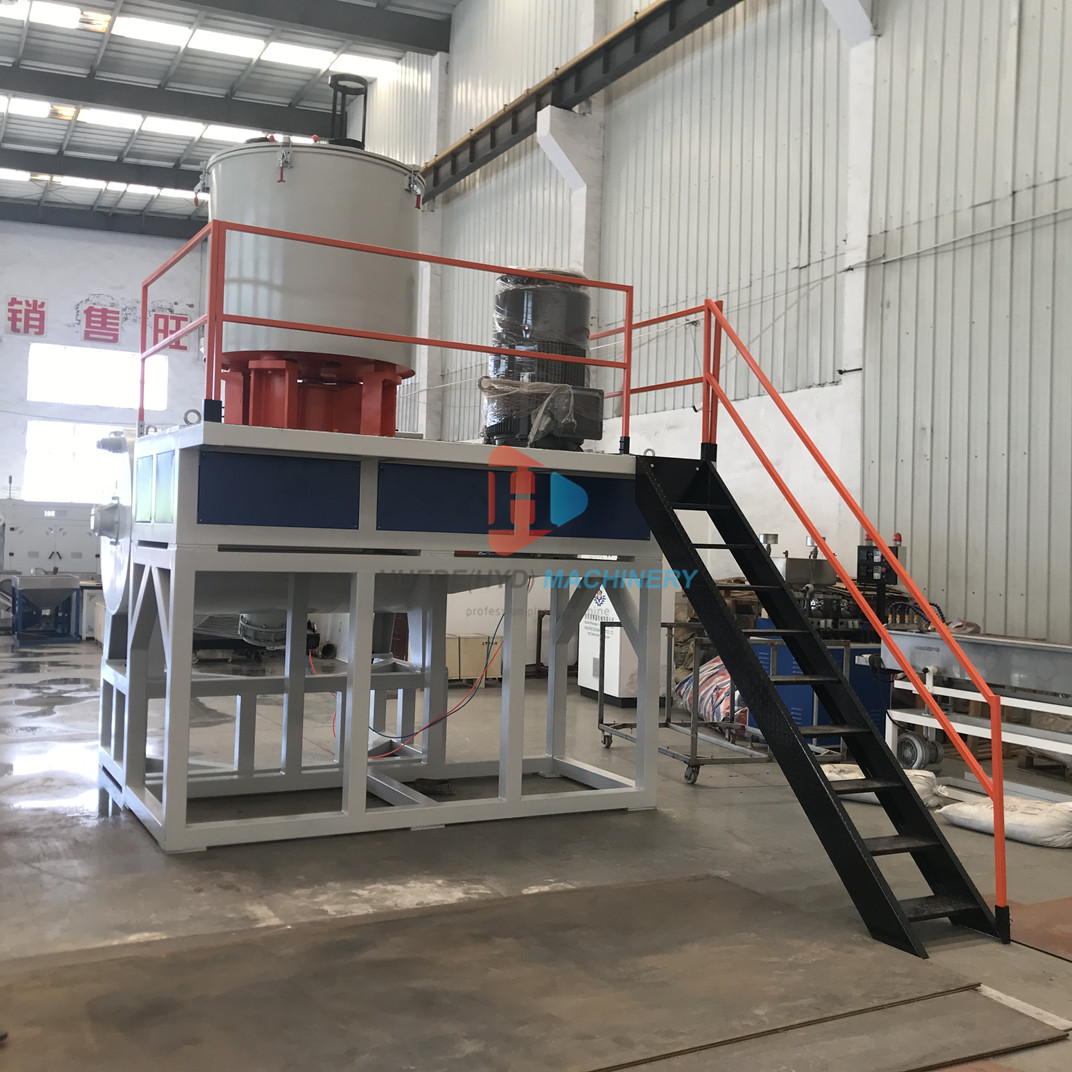

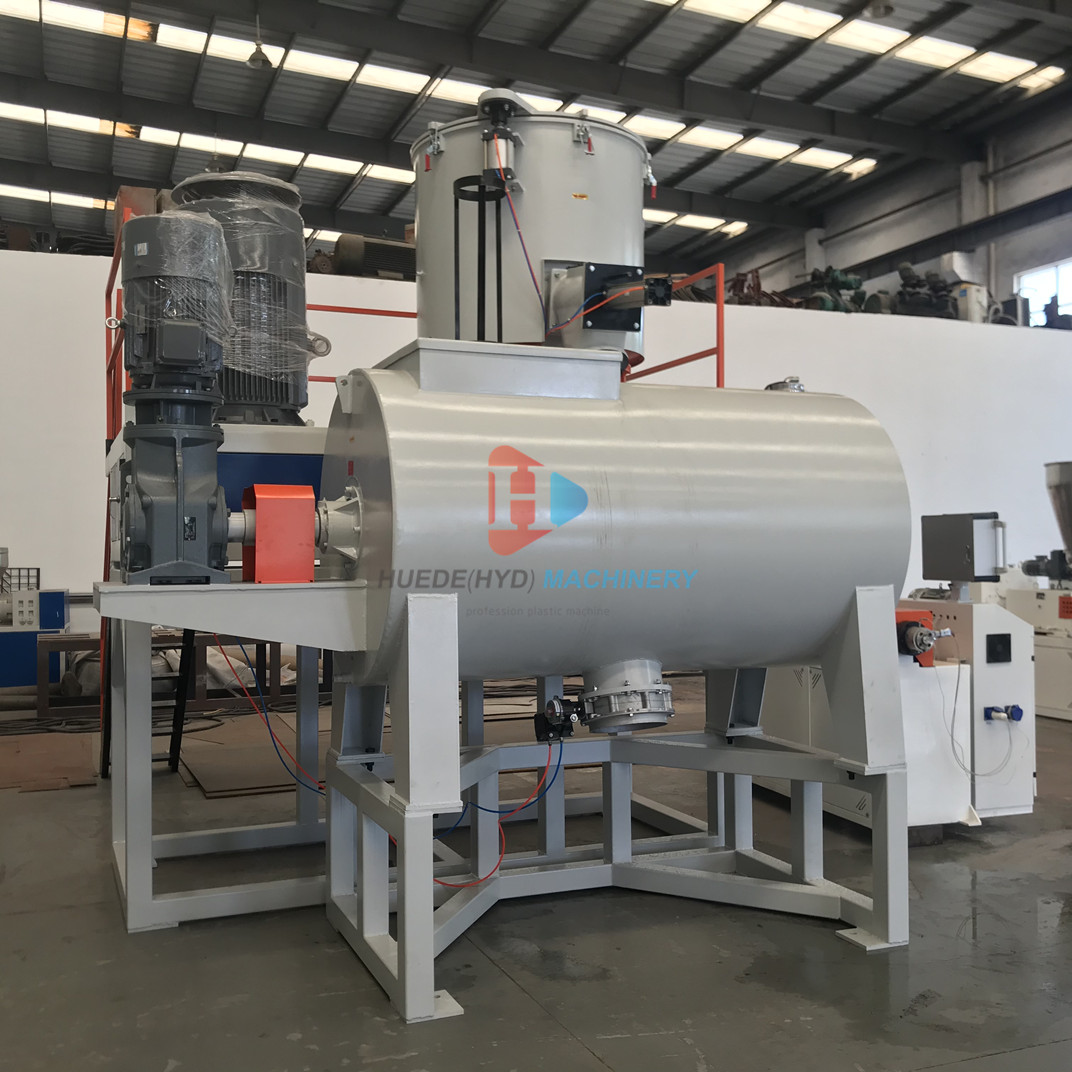

Details Images
Parameter
Model
SRL-W
300/600
SRL-W
500/1000
SRL-W
600/1600
SRL-W
800/2000
SRL-W
800/2500
Total volume (L)
300/600
500/1000
600/1600
800/2000
800/2500
Effective Volume (L)
225/384
375/660
375/1024
560/1280
560/1600
Rotating Speed (RPM)
480/964/70
441/886/51
441/886/51
330/660/51
330/660/51
Mixing time (Min.)
8-15
8-15
8-15
8-15
8-15
Motor power (KW)
40/55/11
47/67/15
47/67/15
83/110/18.5
83/110/22
Capacity
(KG/H)
550-600
800-1000
800-1000
1300-1500
1300-1500
