SHR Series High Speed Hot Mixer

You are here:Home >> Products >> Pvc mixer

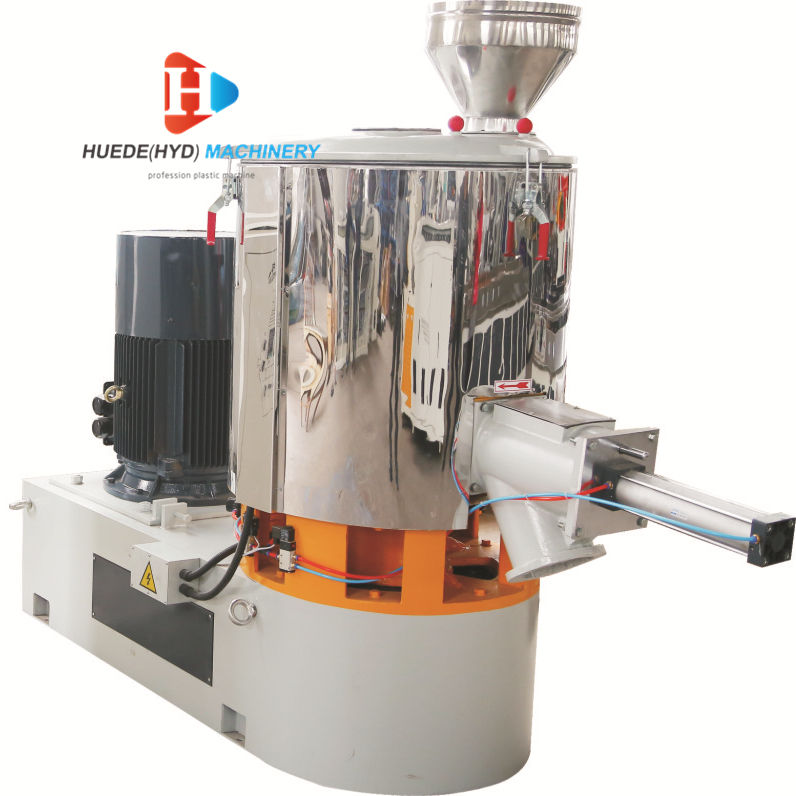

SHR Series High Speed Hot Mixer

  • Product Description


Products Description

Hot Mixer Machine

The High Speed Hot Mixer is mainly used for the mixing and coloring of polyvinyl chloride resin, the coloring and drying of polyethylene and polypropylene particles, the drying before the molding and processing of hygroscopic resins such as ABS and polycarbonate, and the mixing of phenolic resin. One of the necessary equipment for plastic processing plants, it also has a wide range of uses in rubber, pharmacy, dyes and other industries. Because Hot Mixing Machine has the advantages of fast mixing, uniform mixture, good resin absorption of plasticizers, simple machine operation, easy cleaning, strong and durable, compact structure, etc., in recent years, it has gradually replaced low-speed mixers and is widely used Production in various plastic industries.

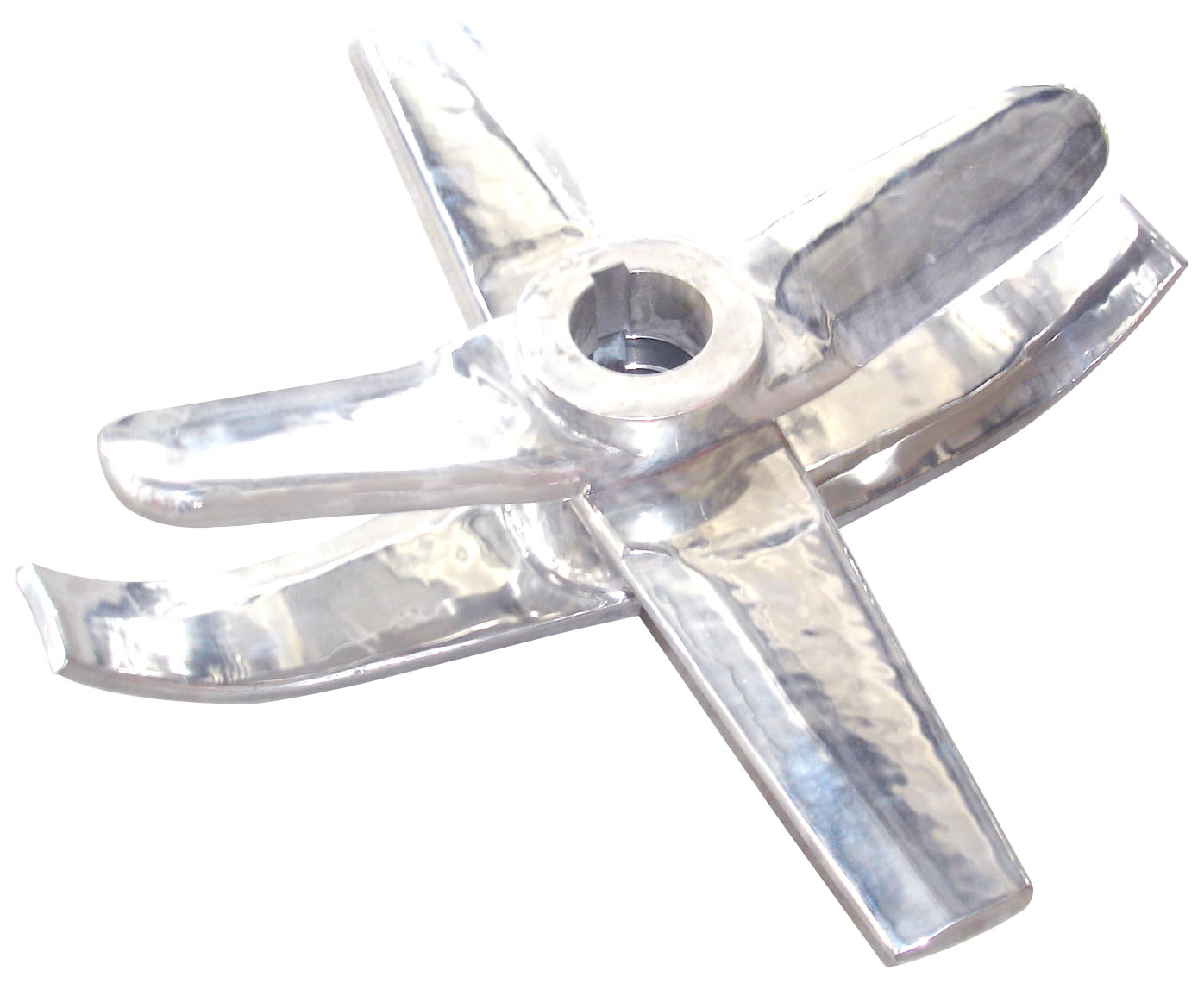

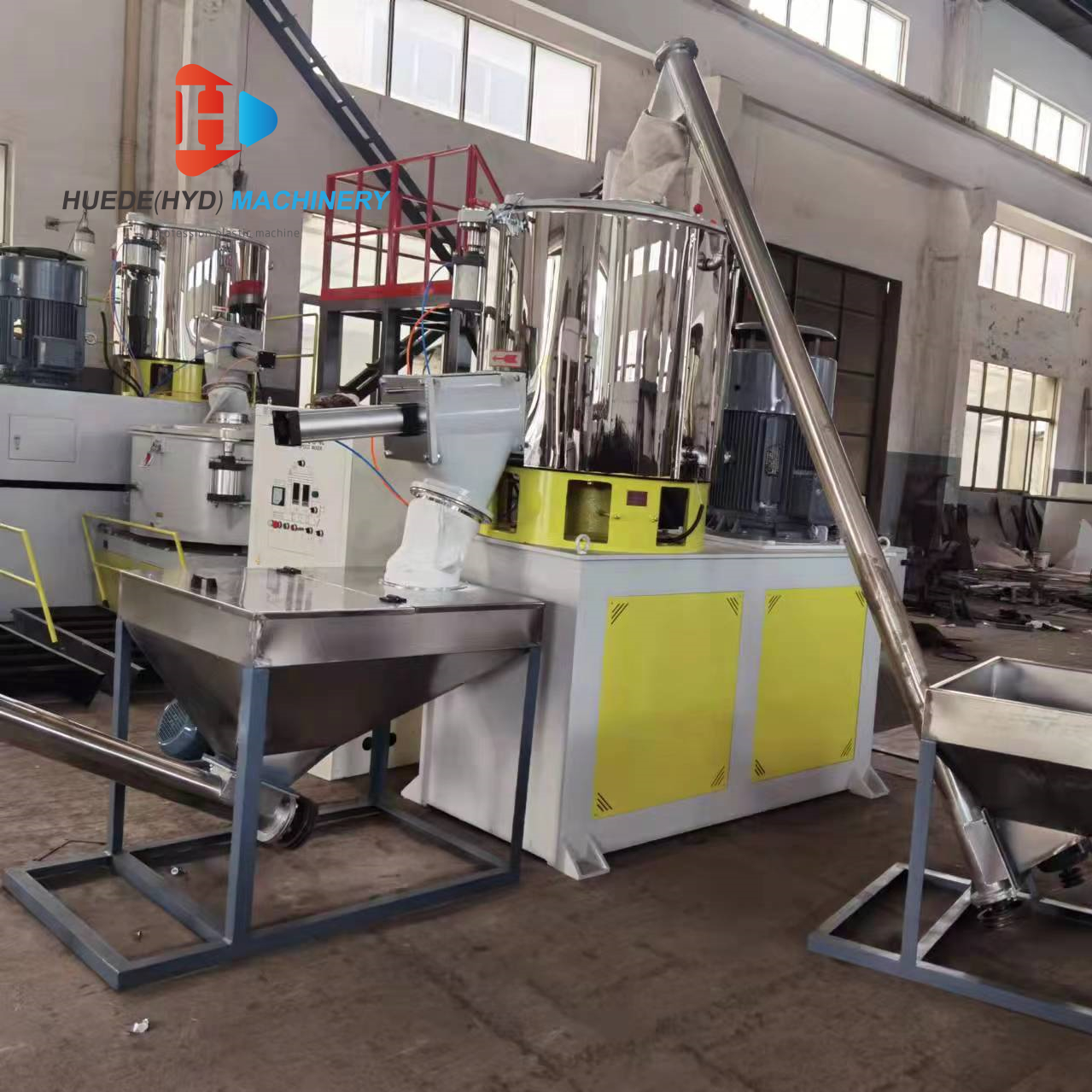

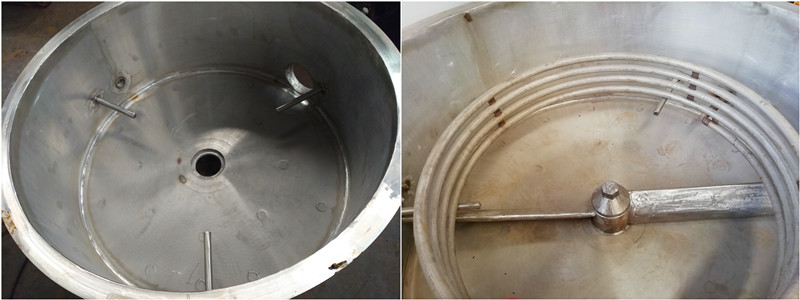

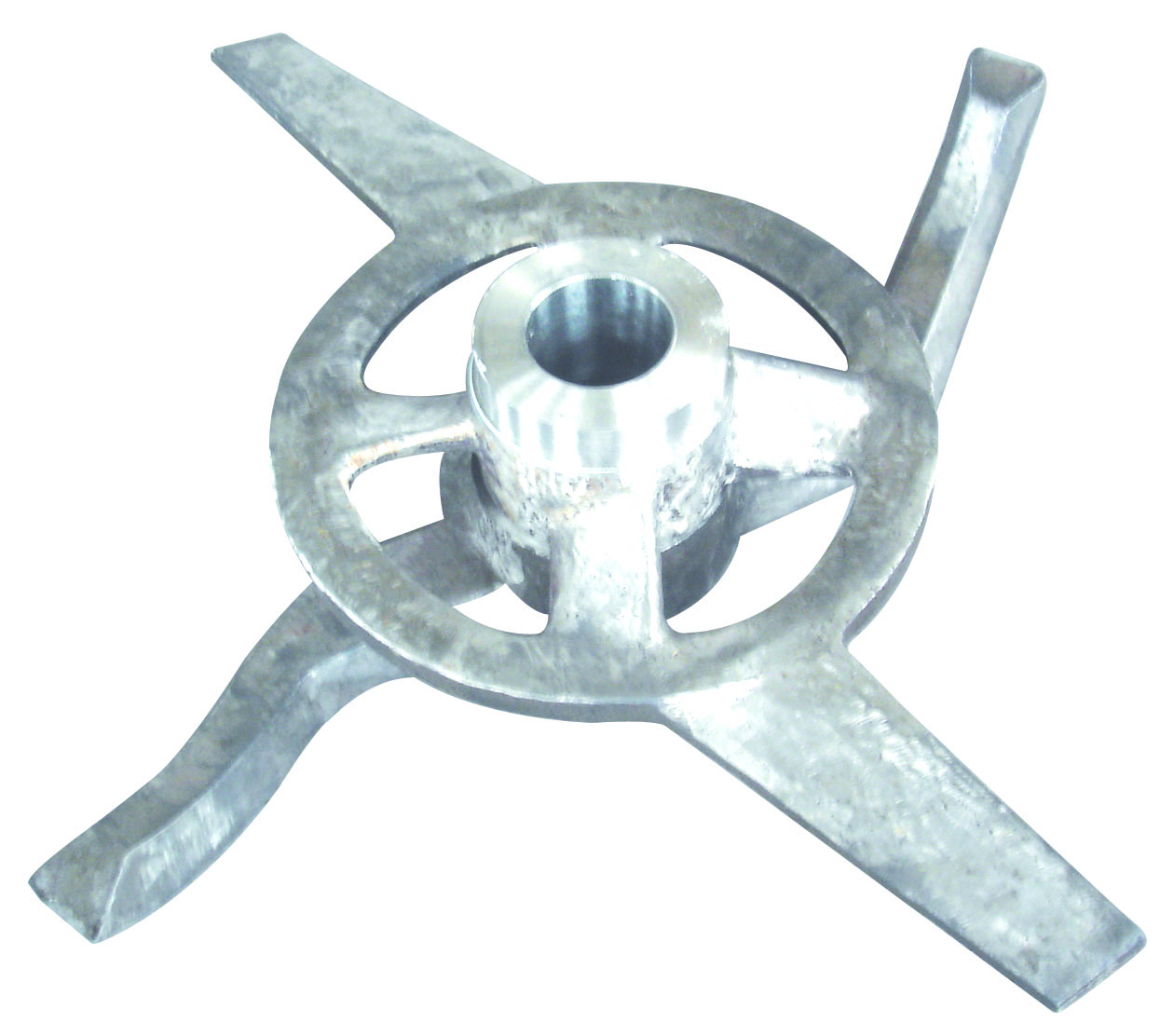

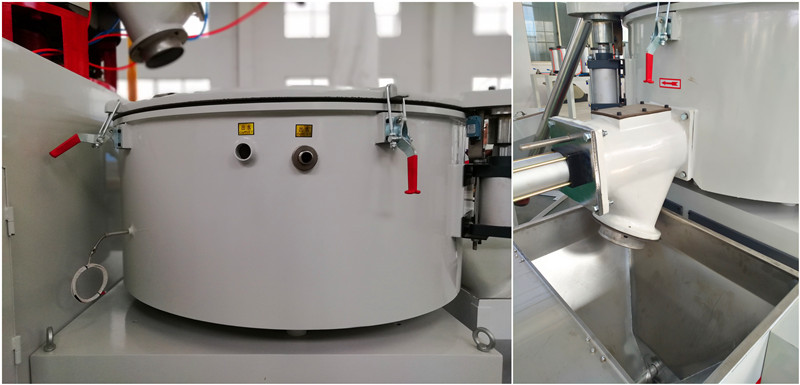

Details Images
H9a4eea7df9774d9fb8518fa700e8cc33D (1).jpg
Size Information
SHR SERIES HIGH-SPEED MIXER
Model
Total Volume
(L)
Effective Volume
(L)
Motor Power
(kw)
Paddle speed
(rpm)
Heating
Discharging
SHR-10A
10
7
3
600-3000
self-friction
Manual
SHR-50A
50
30
7/11
750/1500
Electric
Pneumatic
SHR-100A
100
75
14/22
650/1300
Electric
Pneumatic
SHR-200A
200
150
30/42
460/920
Electric
Pneumatic
SHR-300A
300
225
40/55
475/950
Electric
Pneumatic
SHR-500A
500
370
47/67, 55/75, 60/90
430/860
Electric
Pneumatic
SHR-800A
800
500
83/110
370/740
Electric
Pneumatic
SHR-1000A
1000
700
110/150
330/600
Electric
Pneumatic
SHR-1300A
1300
1000
132/200
330/600
Electric
Pneumatic

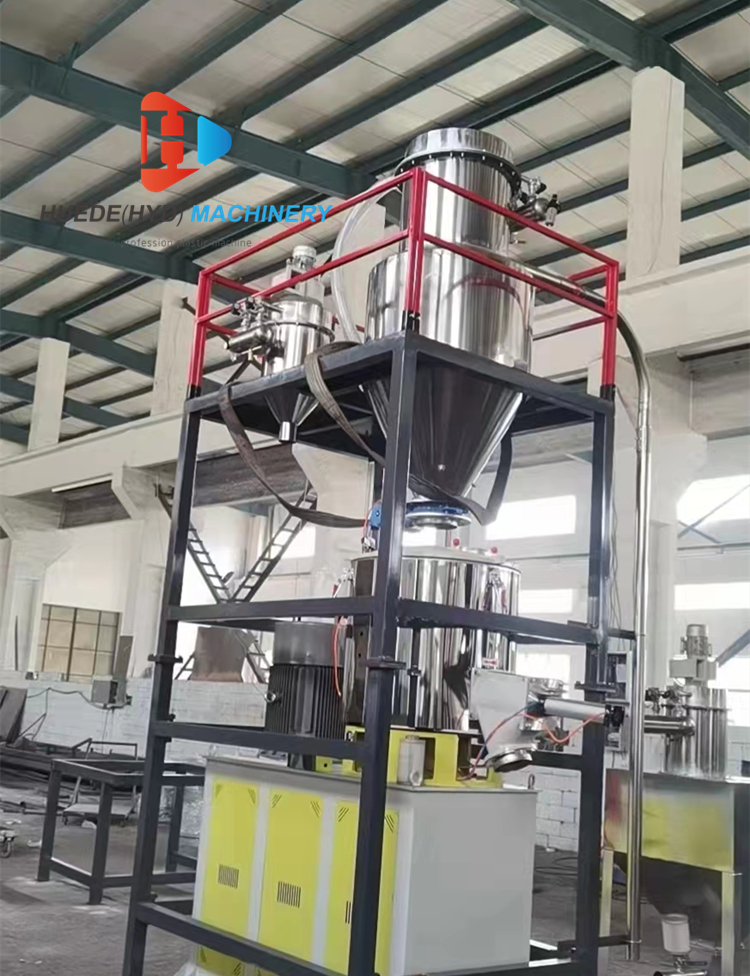

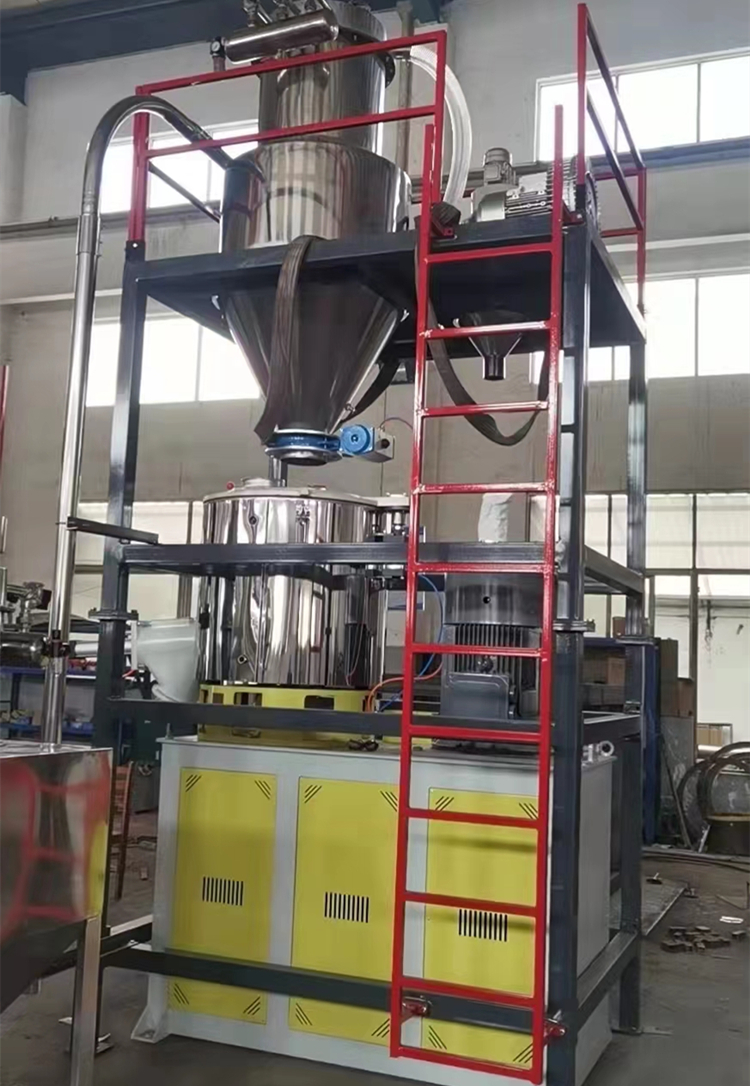

SRL-Z SERIES VERTICAL MIXING UNIT
Model
Total Volume
(L)
Effective Volume
(L)
Paddle speed
Motor Power
(kw)
Water
Consumption
Discharging
Weight
SRL-Z100/200
100/200
75/160
650/1300/90
14/22/7.5
3.5t/h
Pneumatic
3T
SRL-Z200/500
200/500
150/320
460/920/90
30/42/11
5t/h
Pneumatic
3.5T
SRL-Z300/600
300/600
200/360
475/950/90
40/55/11
5.8t/h
Pneumatic
3.8T
SRL-Z500/1000A
500/1000
375/650
475/950/90
47/67/15
6.9t/h
Pneumatic
5.8T
SRL-Z800/1600A
800/1600
600/1024
370/740/68
60/90/22
10t/h
Pneumatic
8T
SRL-Z800/2000A
800/2000
600/1500
370/740/68
83/110/22
12t/h
Pneumatic
8.5T
SRL-Z1000/3000A
1000/3000
800/2200
66/68
160/30
15/h
Pneumatic
10T
Model
Overall size
SRL-Z100/200
2500×2000×2200
SRL-Z200/500
4580×2240×2470
SRL-Z300/600
4580×2240×2500
SRL-Z500/1000A
4600×3000×4050
SRL-Z800/1600A
6230×4230×4480
SRL-Z800/2000A
4580×3860×6550
SRL-Z1000/3000A
5800×4500×7300
