PLA ABS PA 3D Printing Filament Production Line

Inquire

Product Description

Products Description

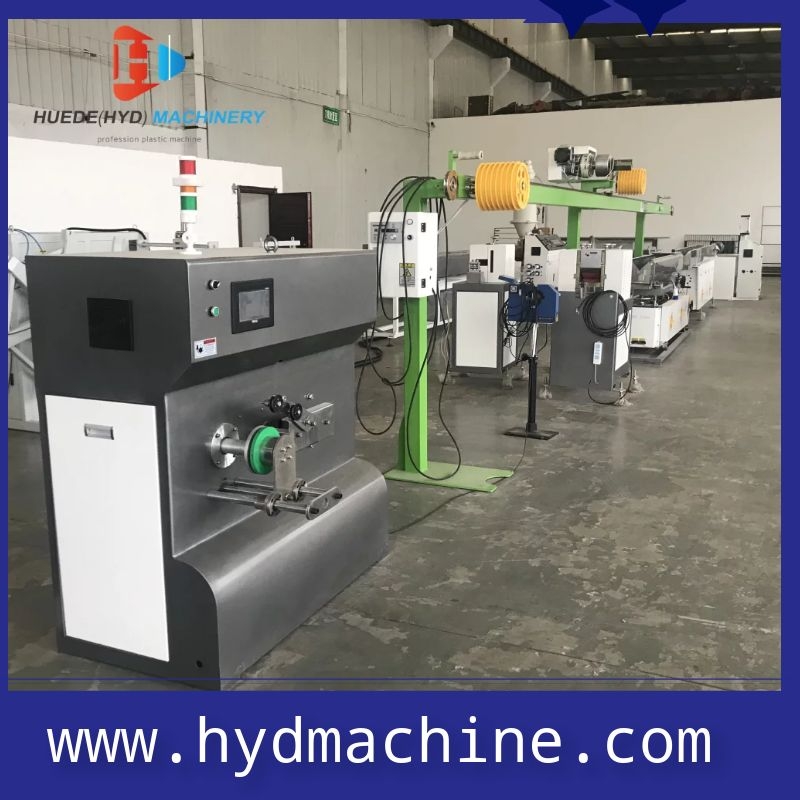

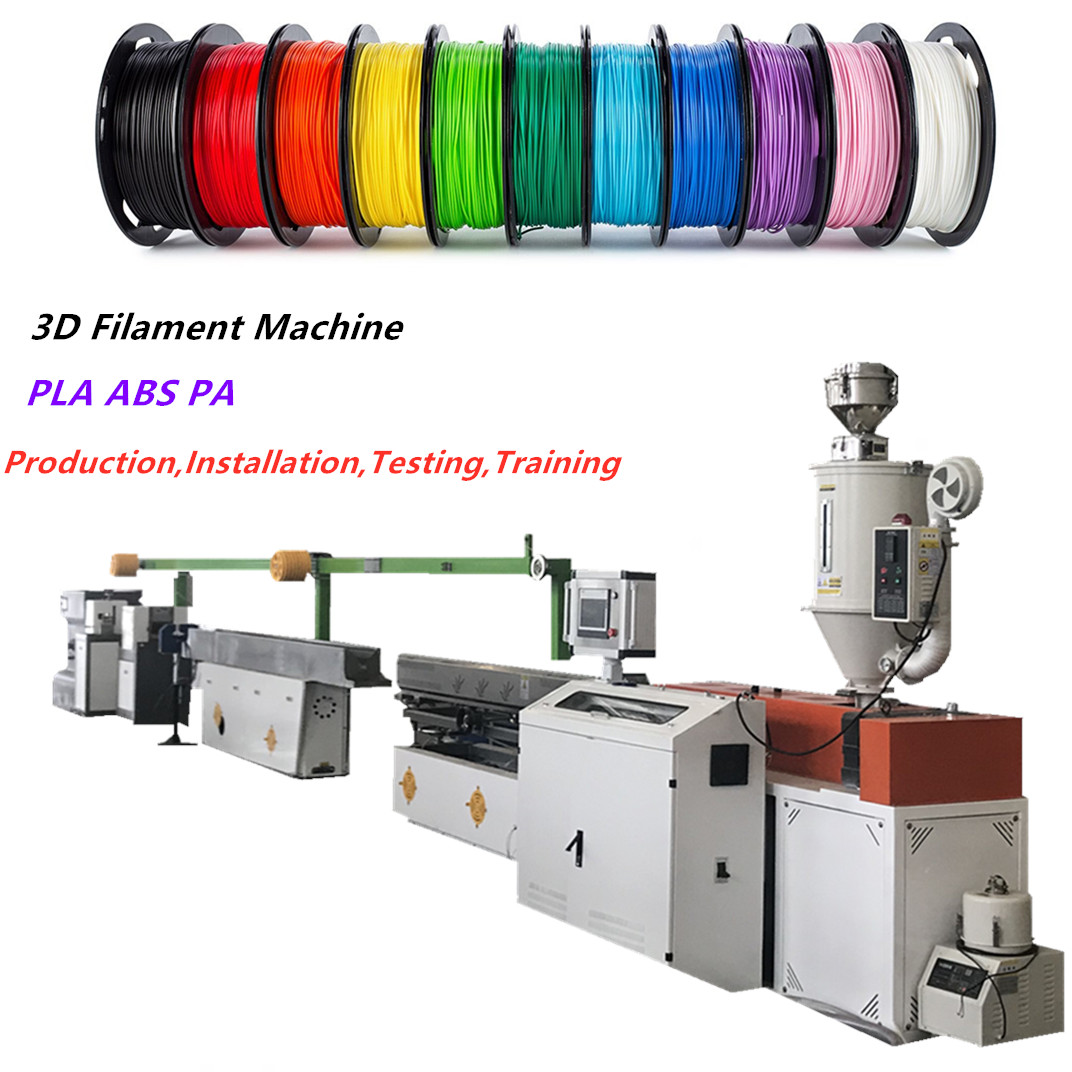

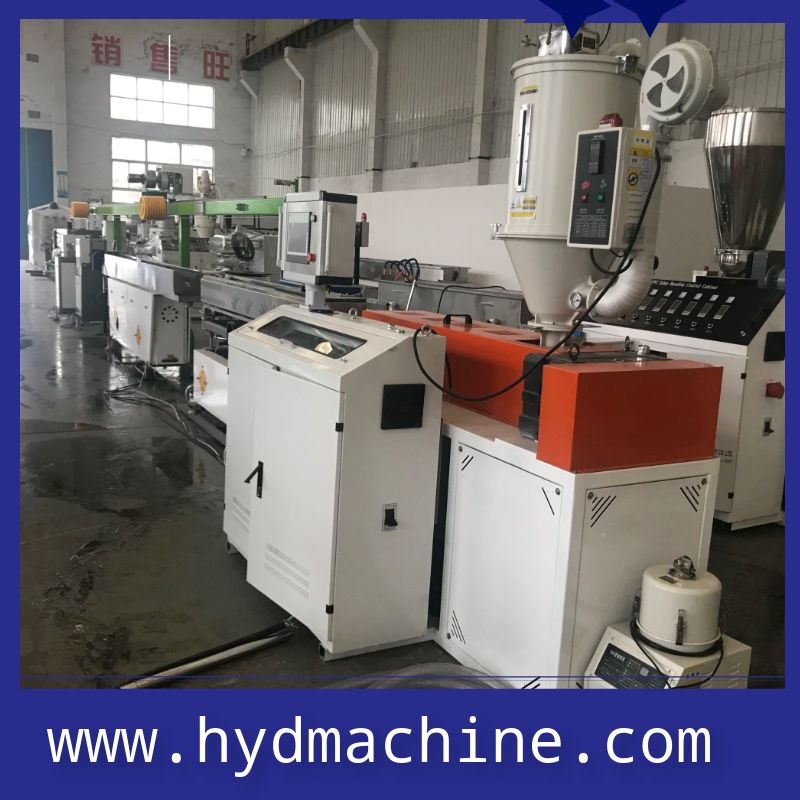

3D Printing Filament Production Line

3D printing is a revolutionary technology. 3D printing is becoming more and more popular in various industries. With the rise of 3D printing technology, our company has developed a 3D Printing Filament Extrusion Line, and sold it to many developed countries such as France, Britain, Russia, and the United States. Of course, our 3D Filament Production Line has many outstanding advantages.

ABS PLA filament production Line Advantages

3D Printing Filament Extrusion Line is mainly used in home or laboratory, the machine cost is low.
The power of 3D Printing Filament Production Line is low, about 0.5KW per hour.
The PLA filament production Line can produce filament with different diameters of 1.5mm-3.0mm.
Easy to operate: 3D Printing Filament Production Line with PLC automatic control system.

Details Images

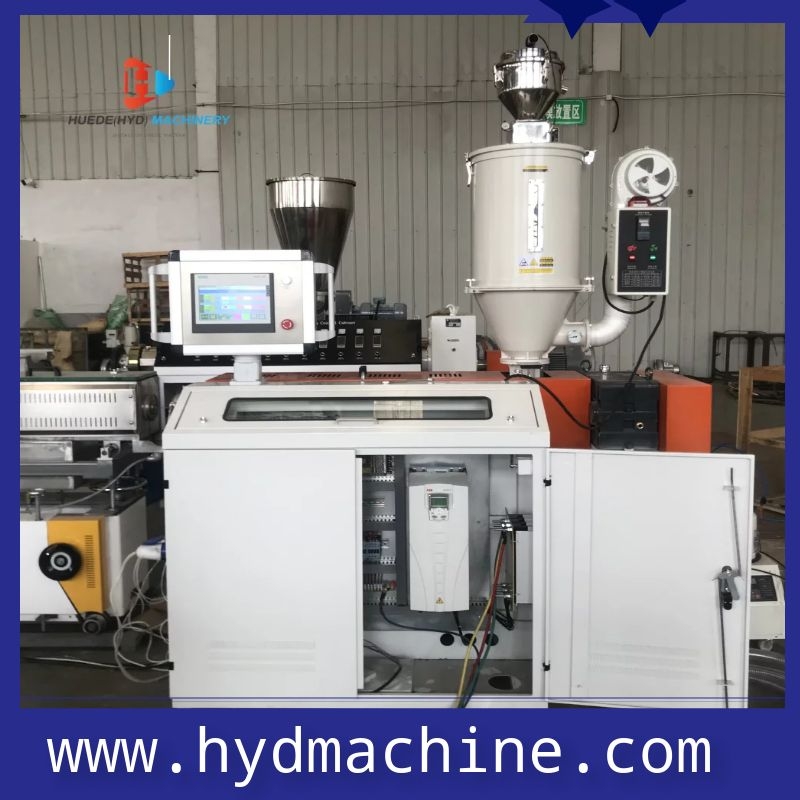

SJ45/28 Single Screw Extruder

Screw Diameter:45mmScrew Length and Screw Diameter Ratio:28:1
Screw and Barrel Material:38CRMOALA
Motor Powder:15KW
Inverter:ABB

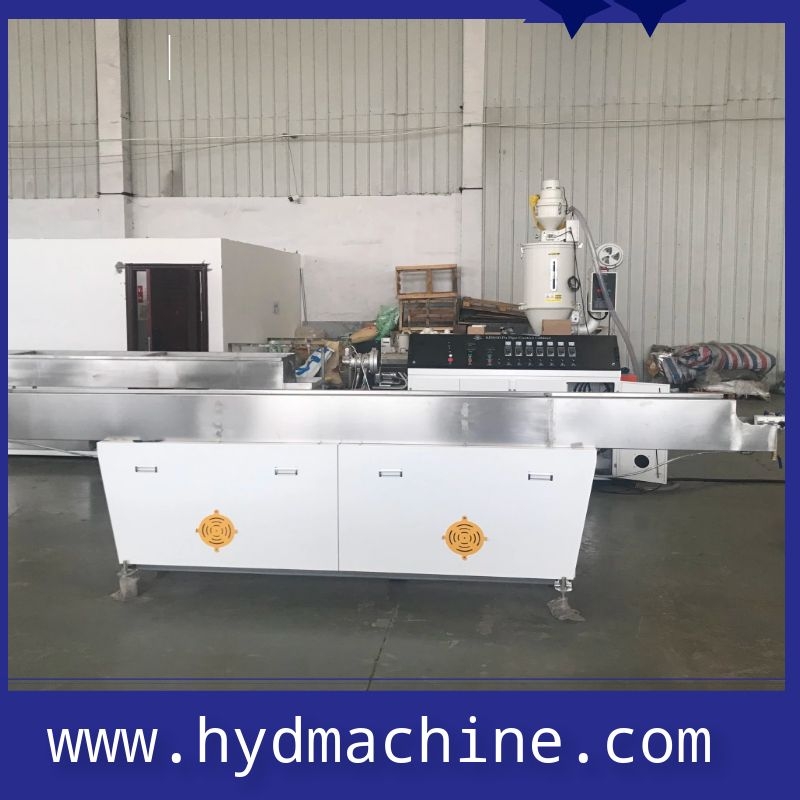

Hot Water Tank

Pump Power:0.37KWHeating Power:3KW
Material:304 stainless steel
Adjustable Method:Manual three-dimensional adjustment

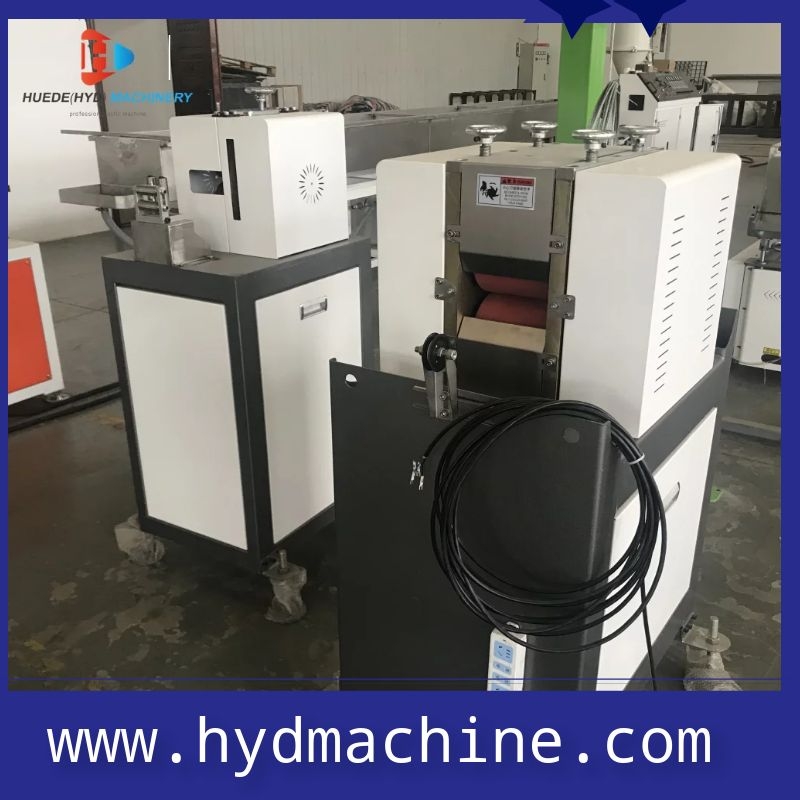

Hauling Off Machine

Hauling Off Motor:0.75KW×1Motor Power:0.4KW
Speed mode:PLC Panel speed control
Size:800*650*1230mm

Winding Frame

Length of storage line:80~100mCoil disc diameter:250mm
Motor powder:0.75KW

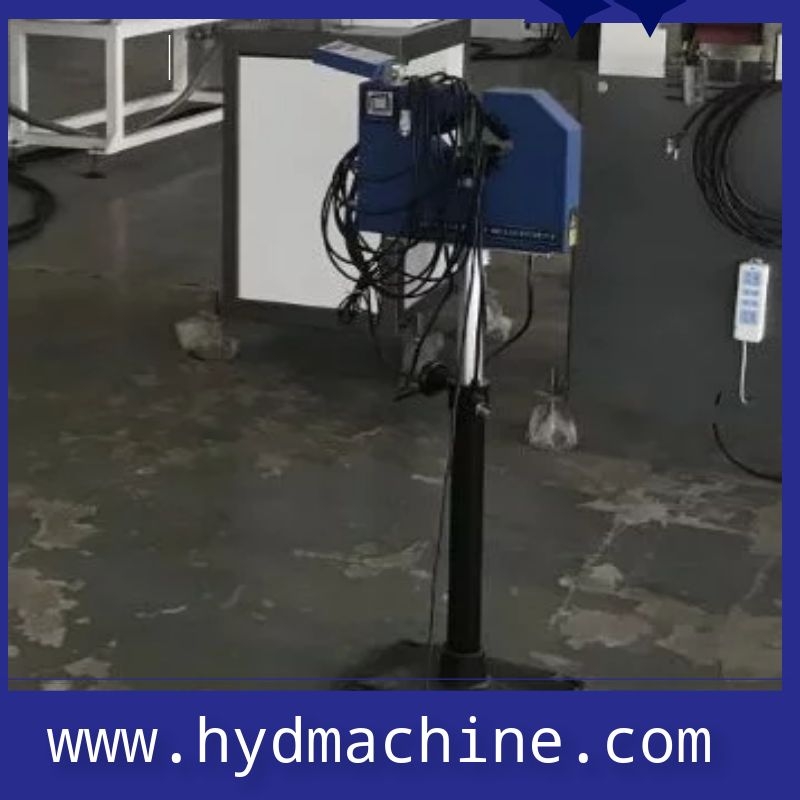

Diameter Gauge

Measuring range:0.1-25mmaccuracy :±0.001mm
resolution:0.001
repetition rate:0.001

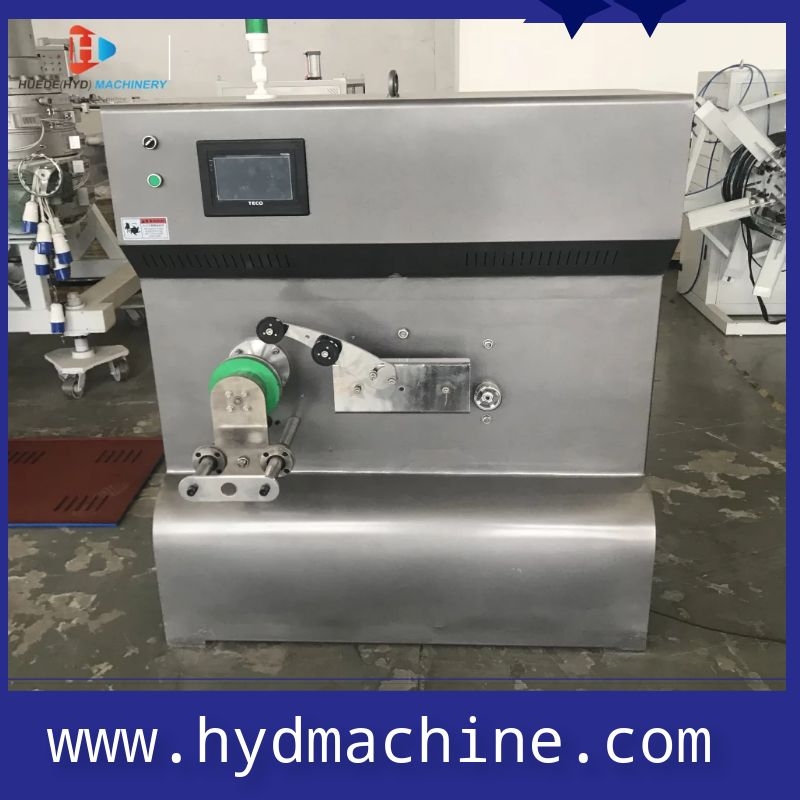

Filament Winding Machine

Motor powder:0.75KWWinder Diameter:1.75·3mm

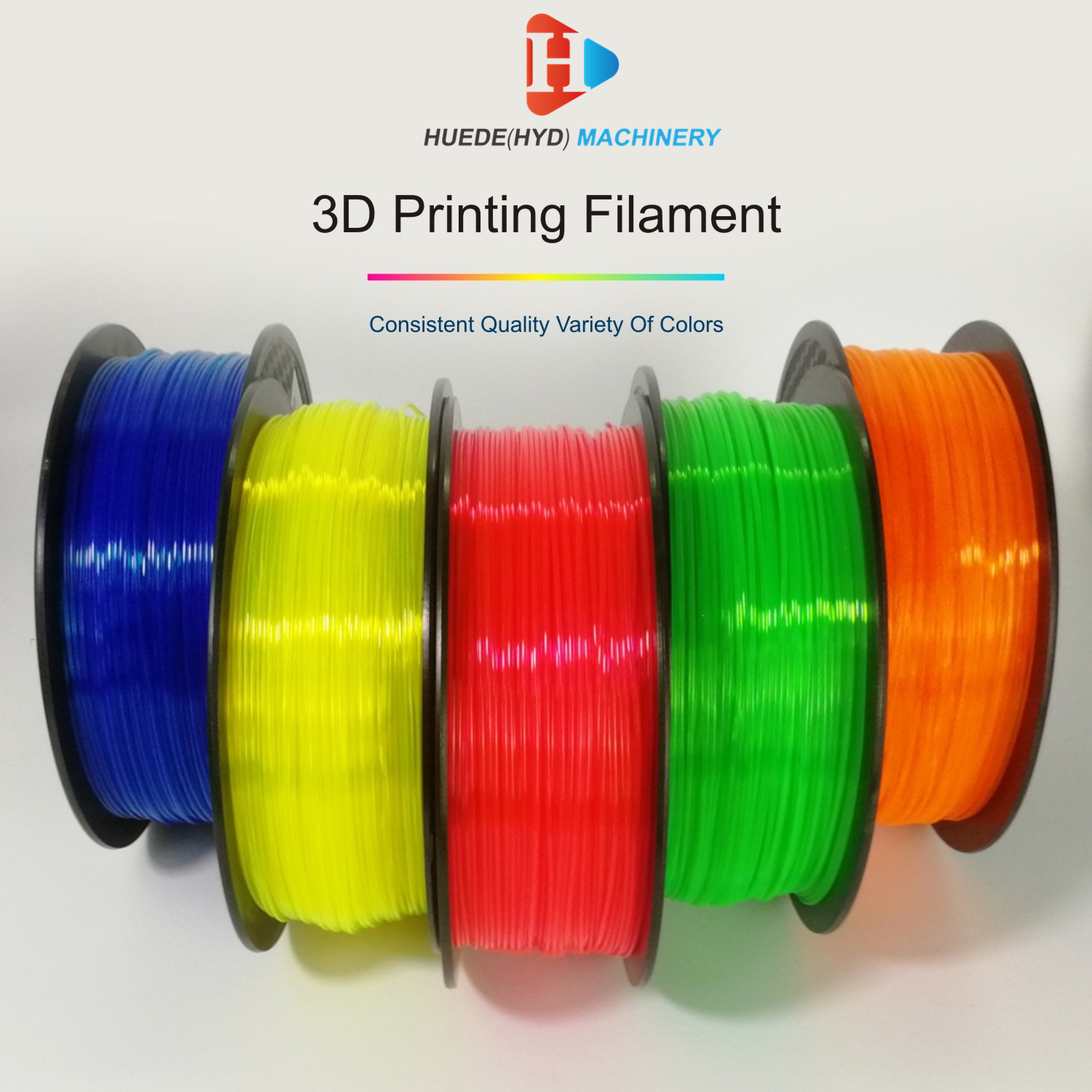

Final Product
