Double cavity pvc pipe production line

Inquire

Product Description

Products Description

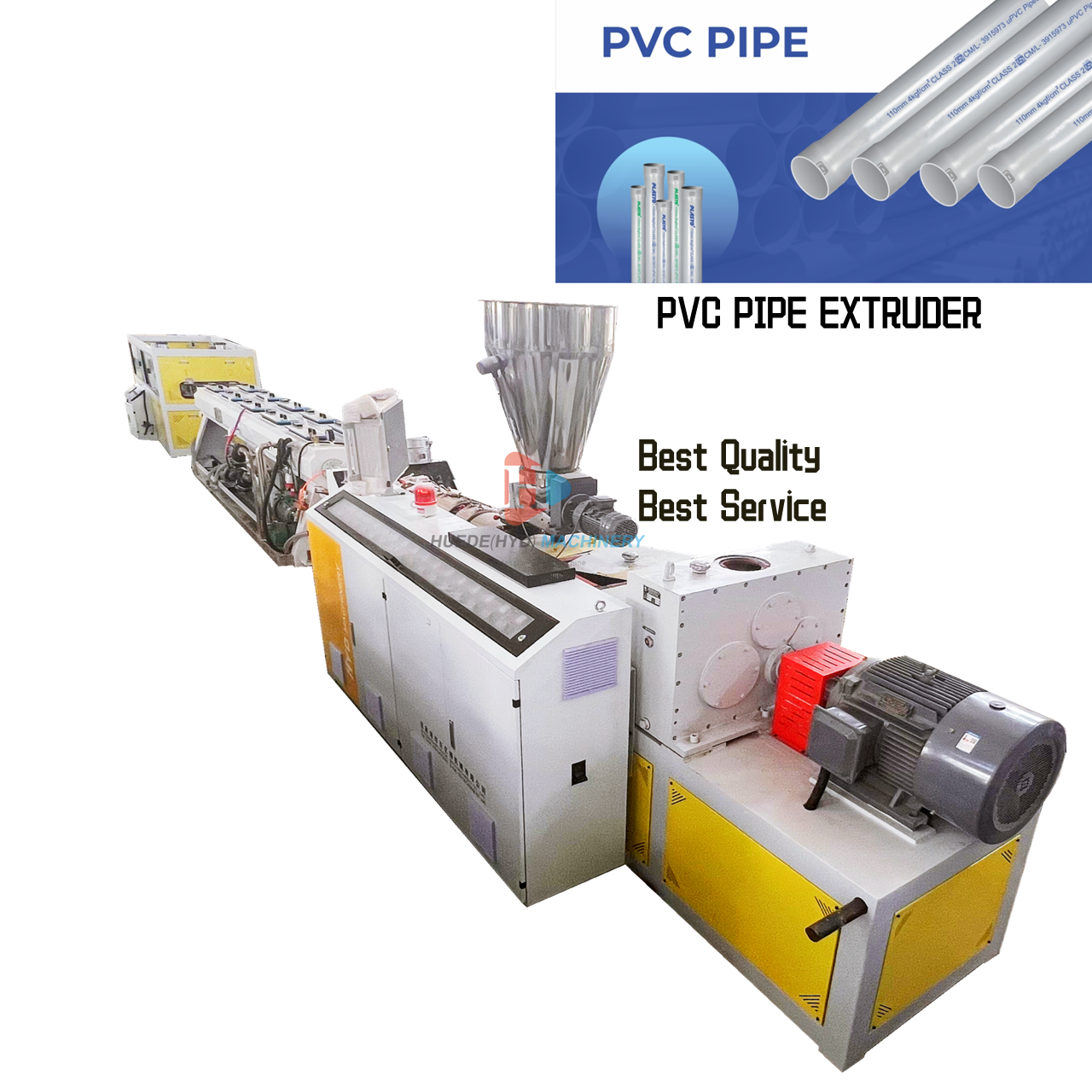

PVC Pipe Extruder

PVC Conduits Pipe Making Machine is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.
This PVC Water Supply Pipe Machine is composed of the conical twin-screw extruder, vacuum calibration tank, printer, haul-off, cutter, stacker, etc.
The extruder and extractor adopt the imported AC frenquncey control device.
The vacuum pump and the main motor adopt the famous brand.
The haul-off has many different kinds of Model, such as two-claw, three-claw, four-claw, five-claw, six-claw.
About the cutter, you can choose the saw blade cutting type or the planet cutting type.
We also can offer some auxiliary machine about pvc Drainage Pipe Machine .
With its wide range including various technical solu-tions, Chenxing's production does not only include stan-dard machines, but also offers complete pipes extru-sion lines, tailor-made according to the customers' requirements, still assuring high performances and competitive prices.
The PVC Pipe Extruder  can produce pipes in PVC materials, with diameters starting from 16mm up to 630 mm. PVC Conduits Pipe Making Machine

Details Images

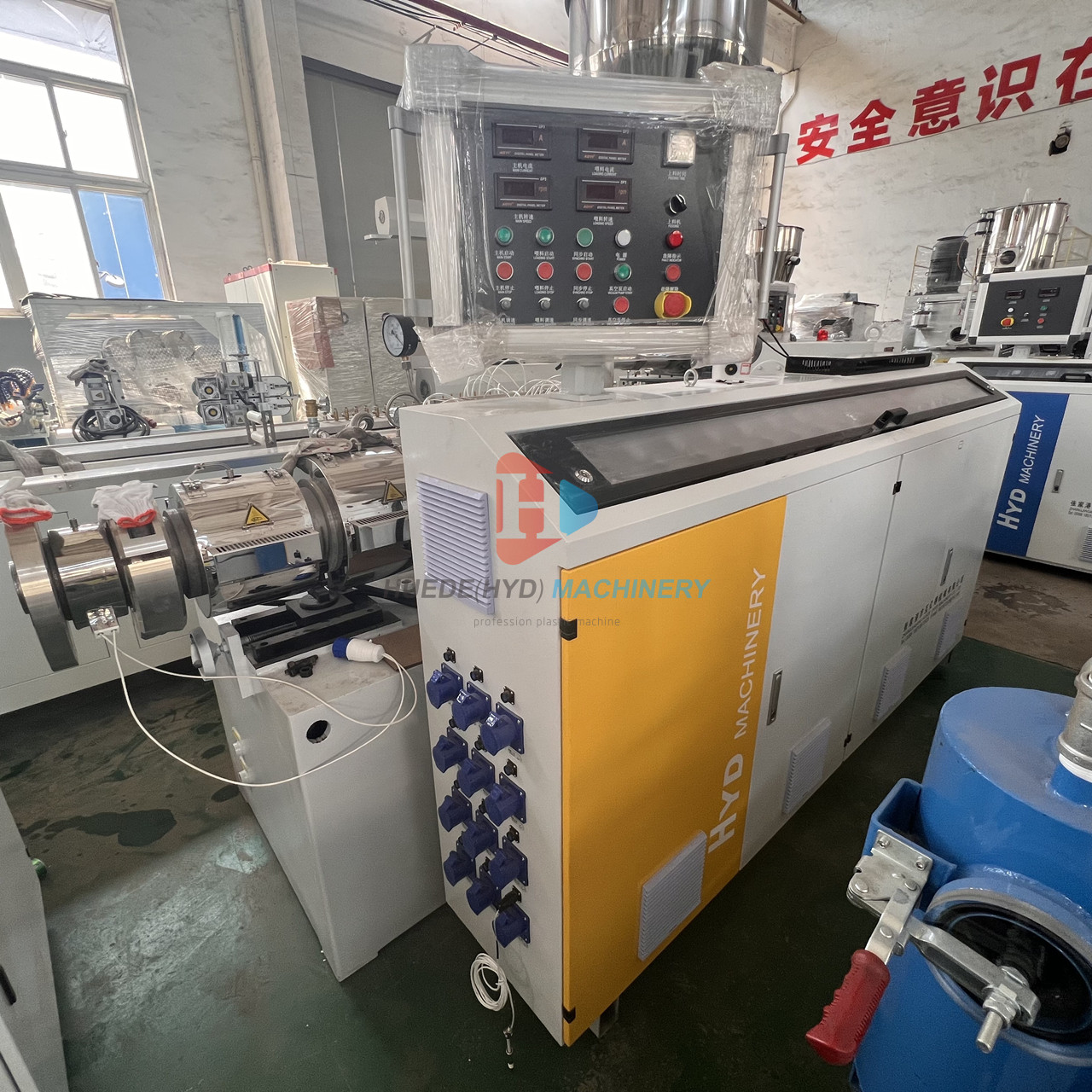

Double Screw Extruder Machine

Used: PVC raw materials, mixing, extrusion process

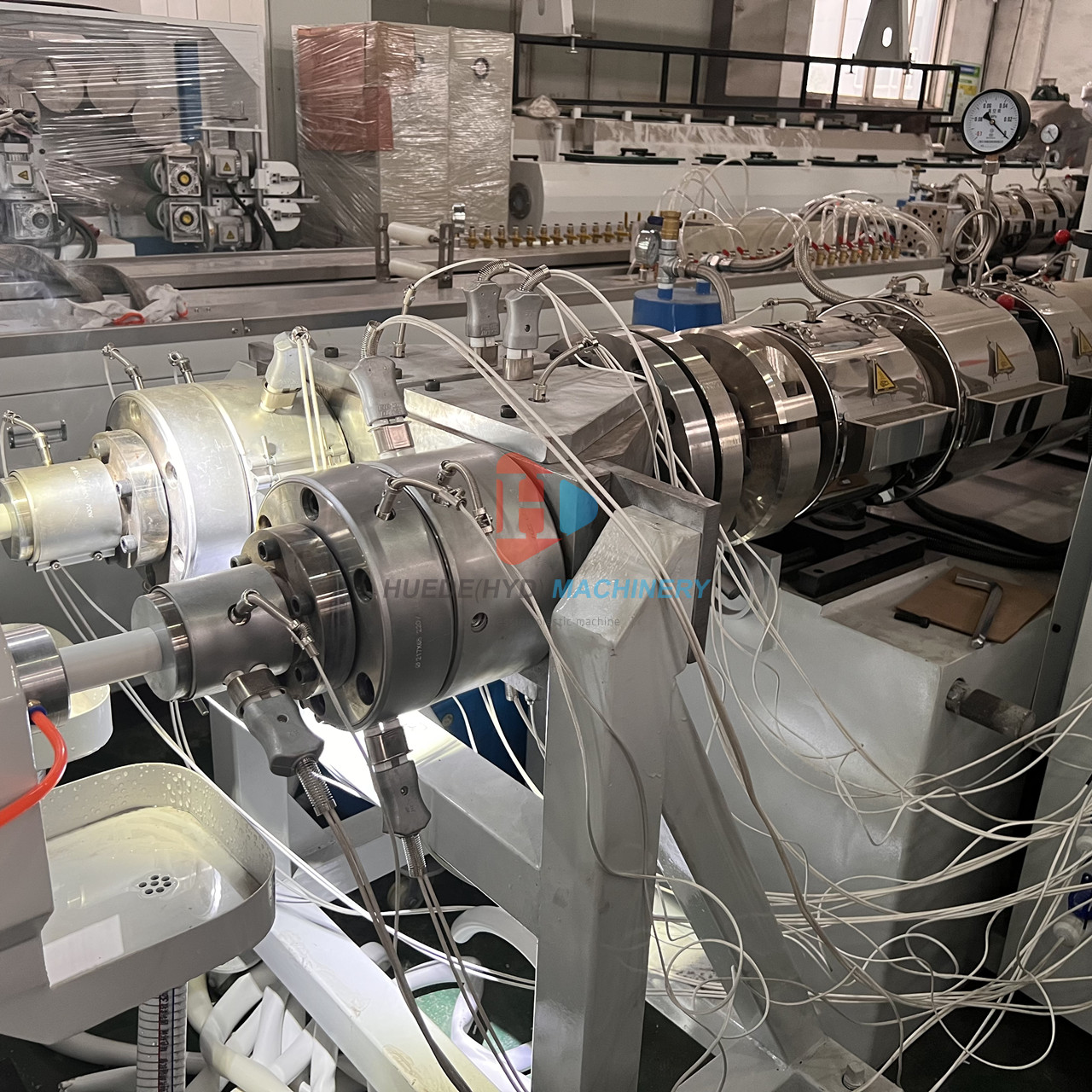

Double Cavity Mould

Forming the Pipe

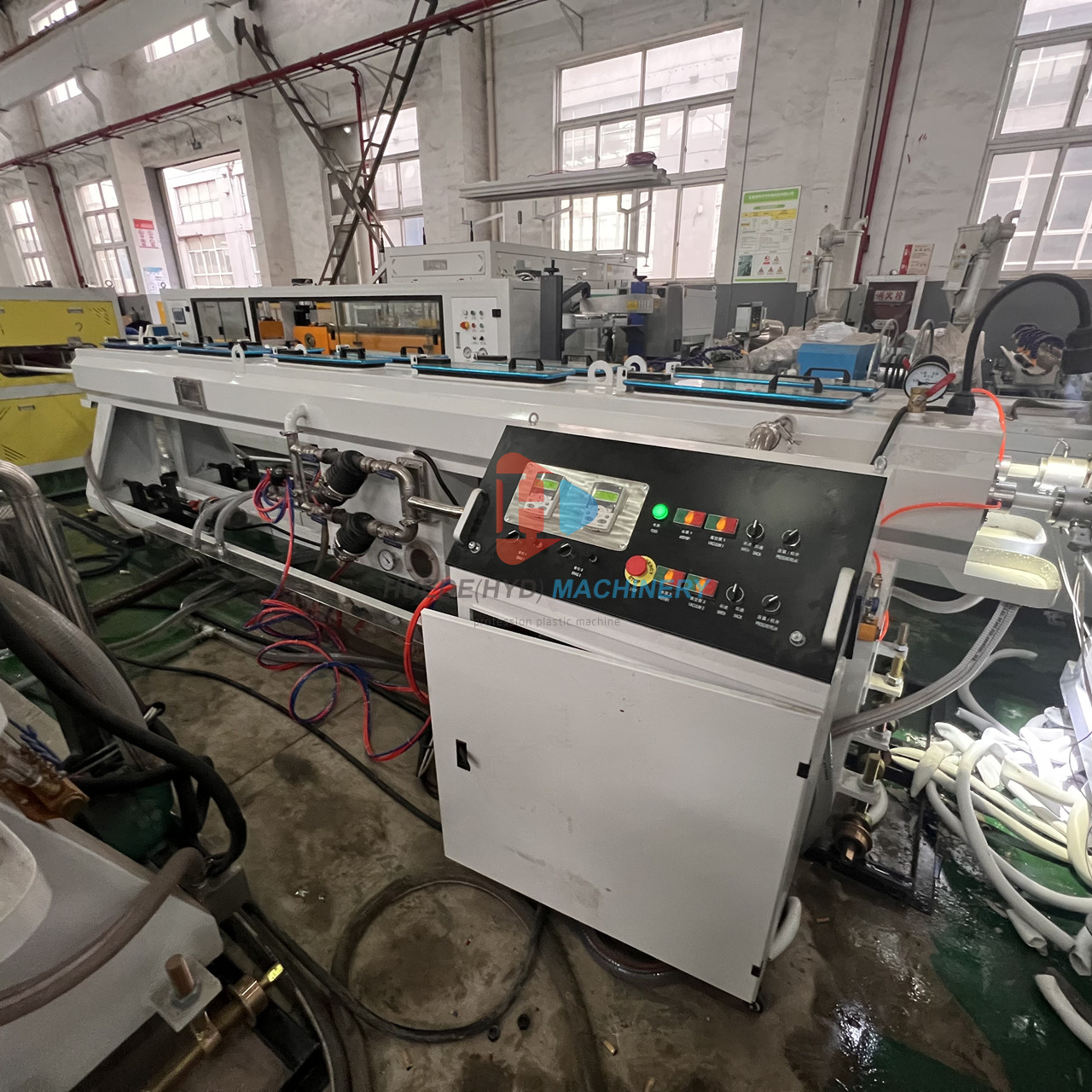

Pipe Vacuum Forming Tank

Used:Plastic pipe vacuum fixed
circle, cooling

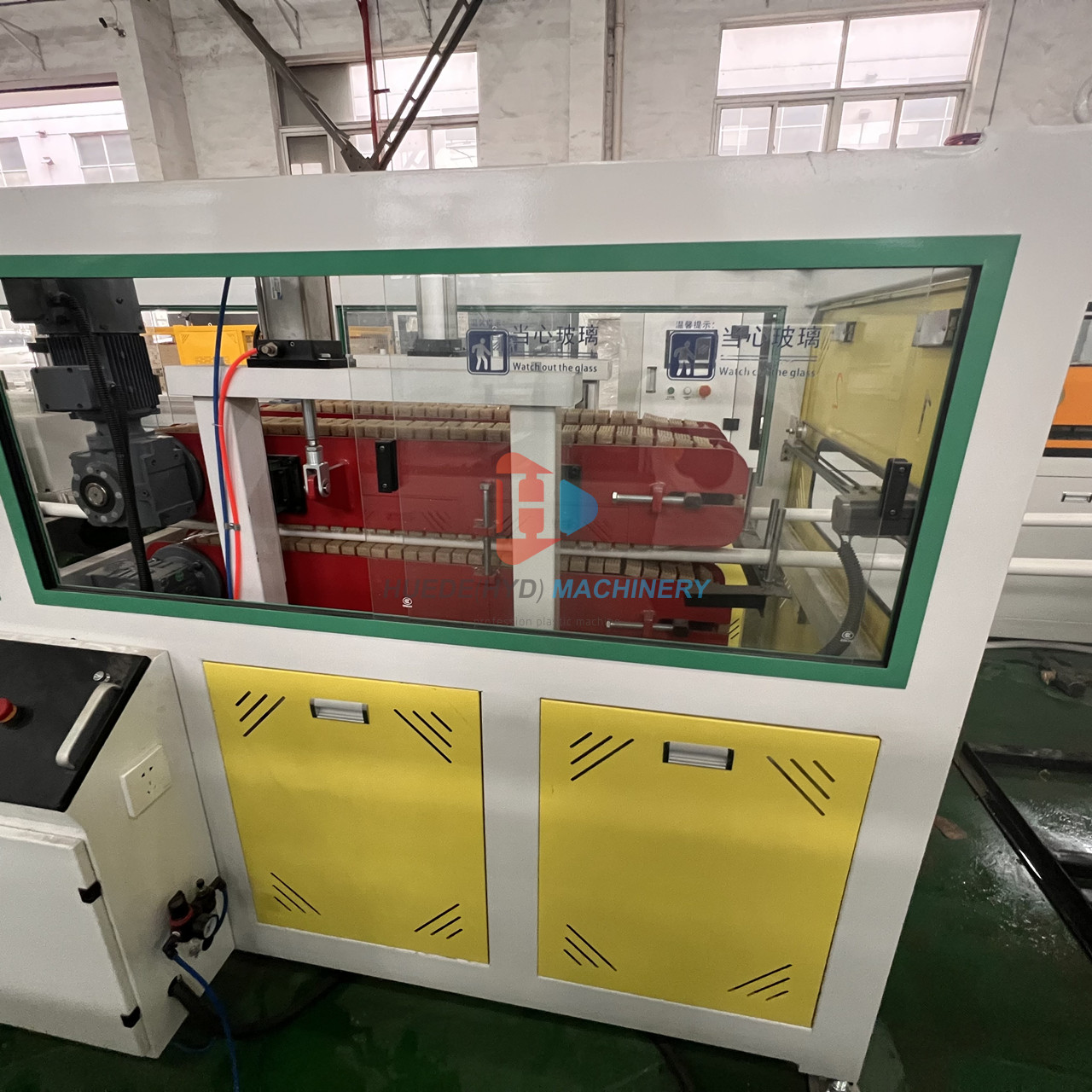

Hauling Off Machine

Uesd: PVC pipe uniform
traction haul off

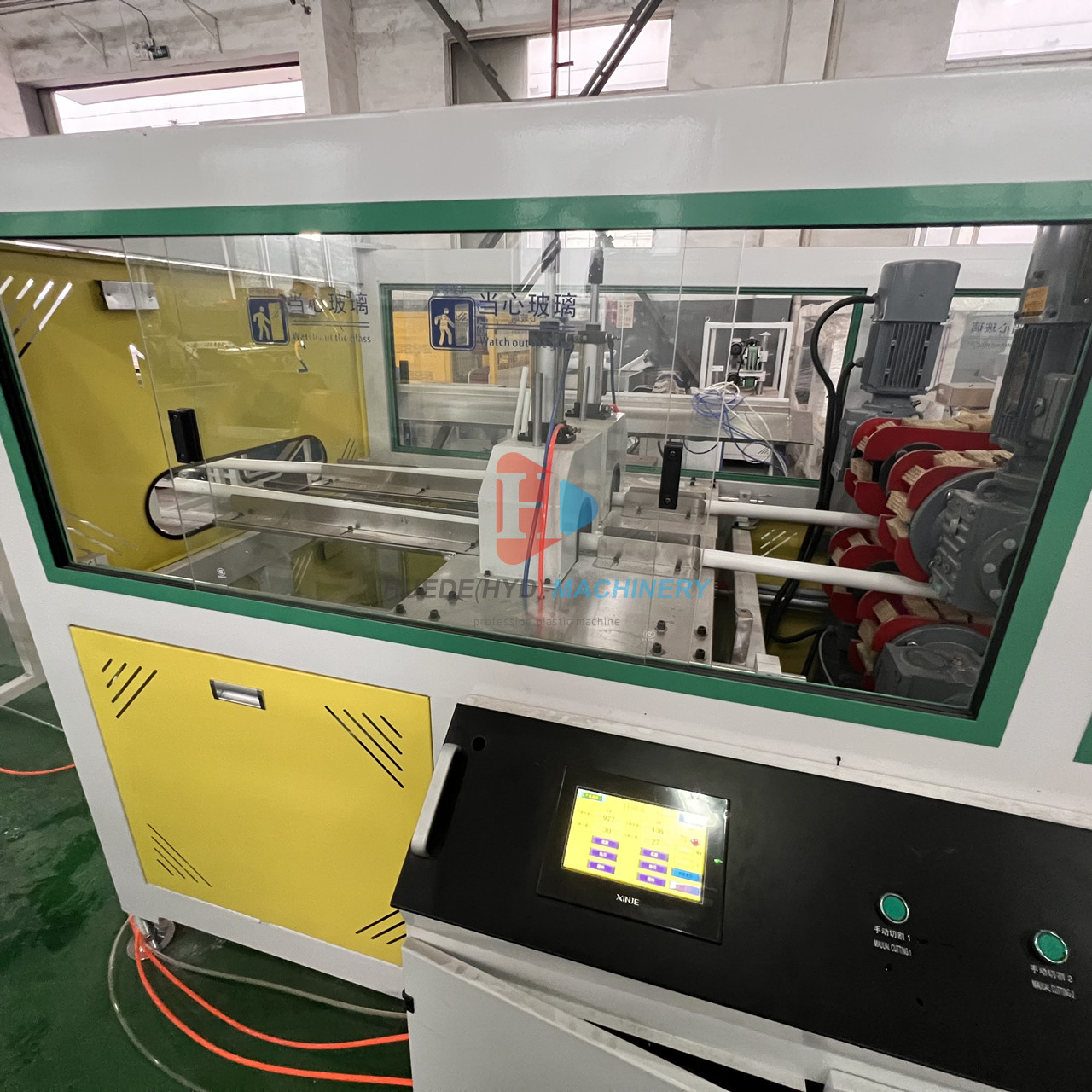

Pipe Cutting Machine

Used: PVC pipe cutting and chamfer

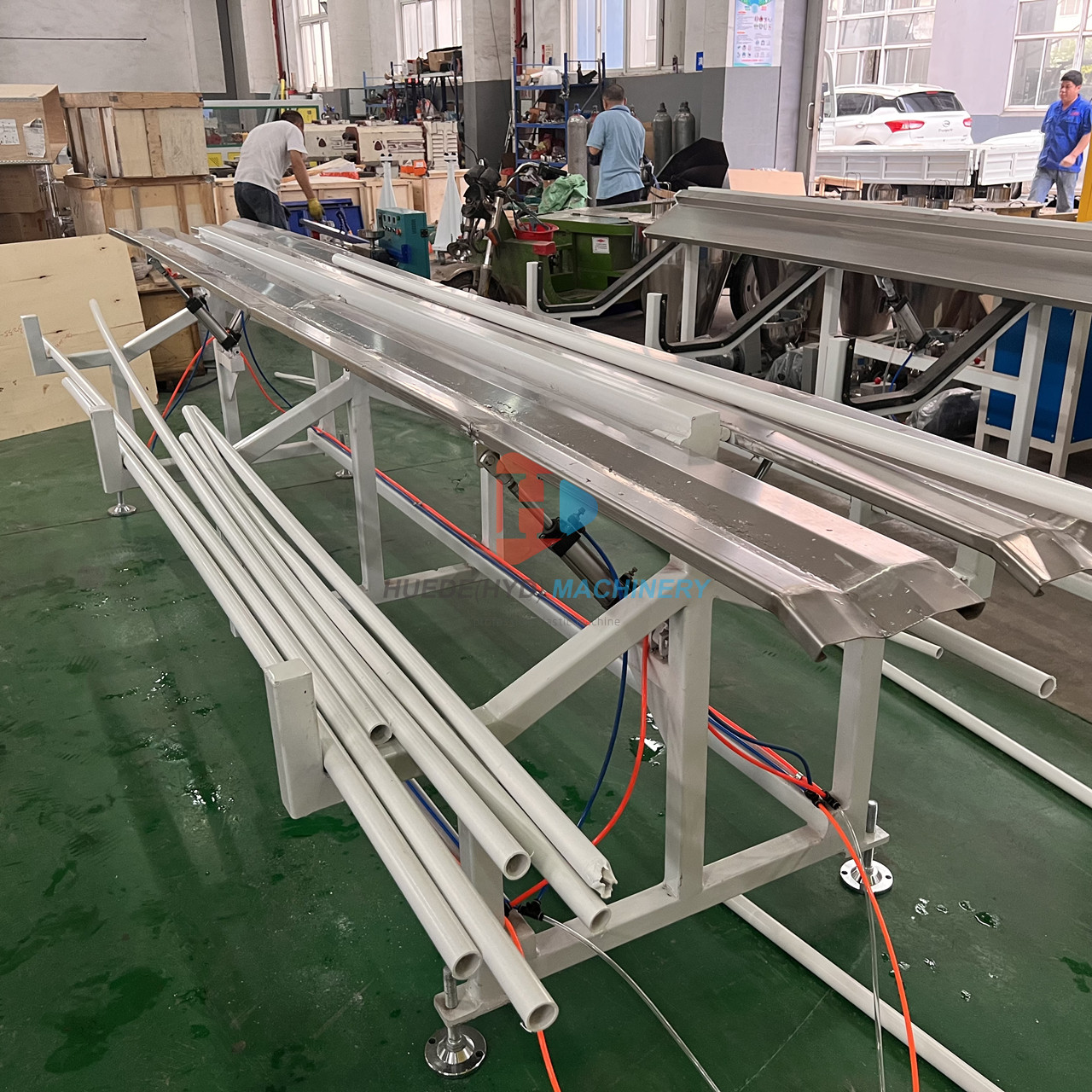

Stacker

Store the pipe

Parameter

Item	PVC63	PVC160	PVC250	PVC315	PVC450	PVC630
Pipe dia. (mm)	16-63	75-160	125-250	180-315	200-450	355-630
Vacuum tank length(m)	6	6	6	9	9	9
Pressure of vacuum	0.03-0.80
Max hauling force(N)	10000	15000	20000	25000	30000	50000
Hauling speed(m/min/max)	10	6	4	3	2	1.4
Refilled water volume (m3/h)	5	6	7	8	9	12
